R911321986 (MSK070E-0300-NN-S1-UP1-NSNN)

MSK IndraDyn S Synchronous Motors

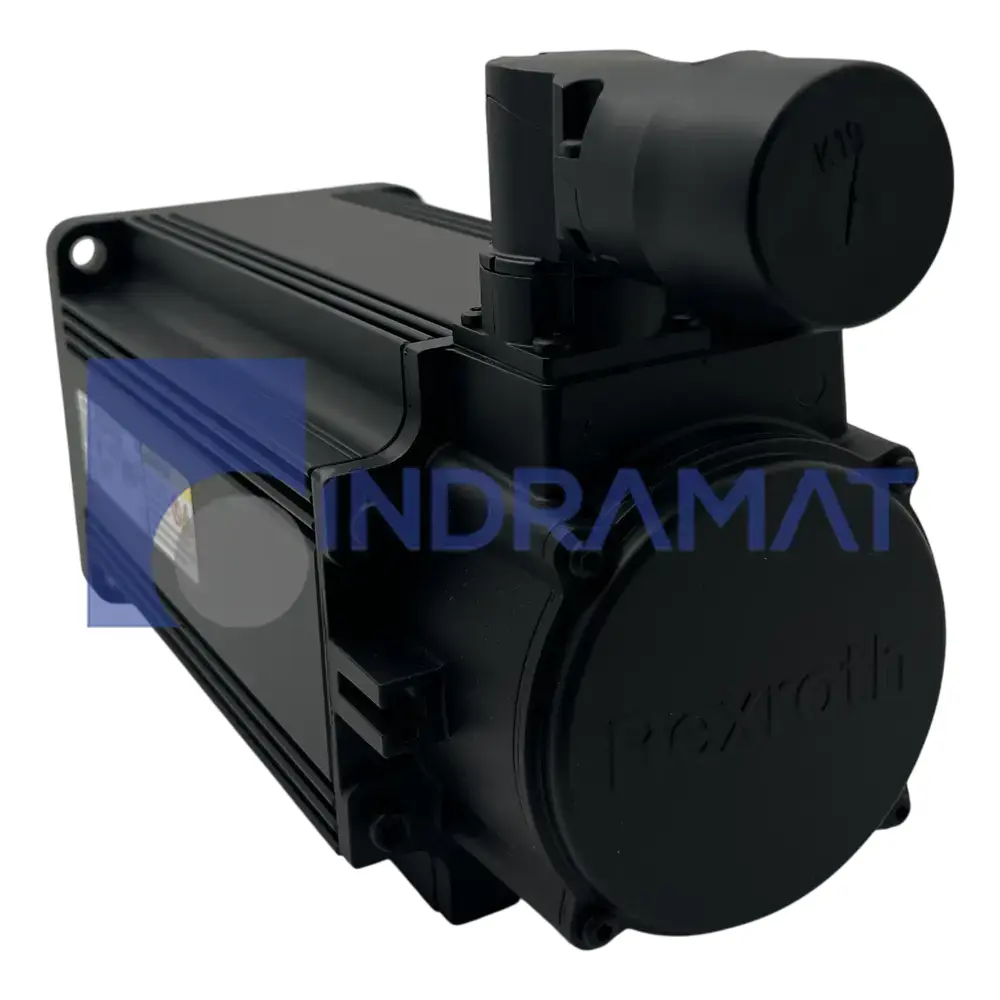

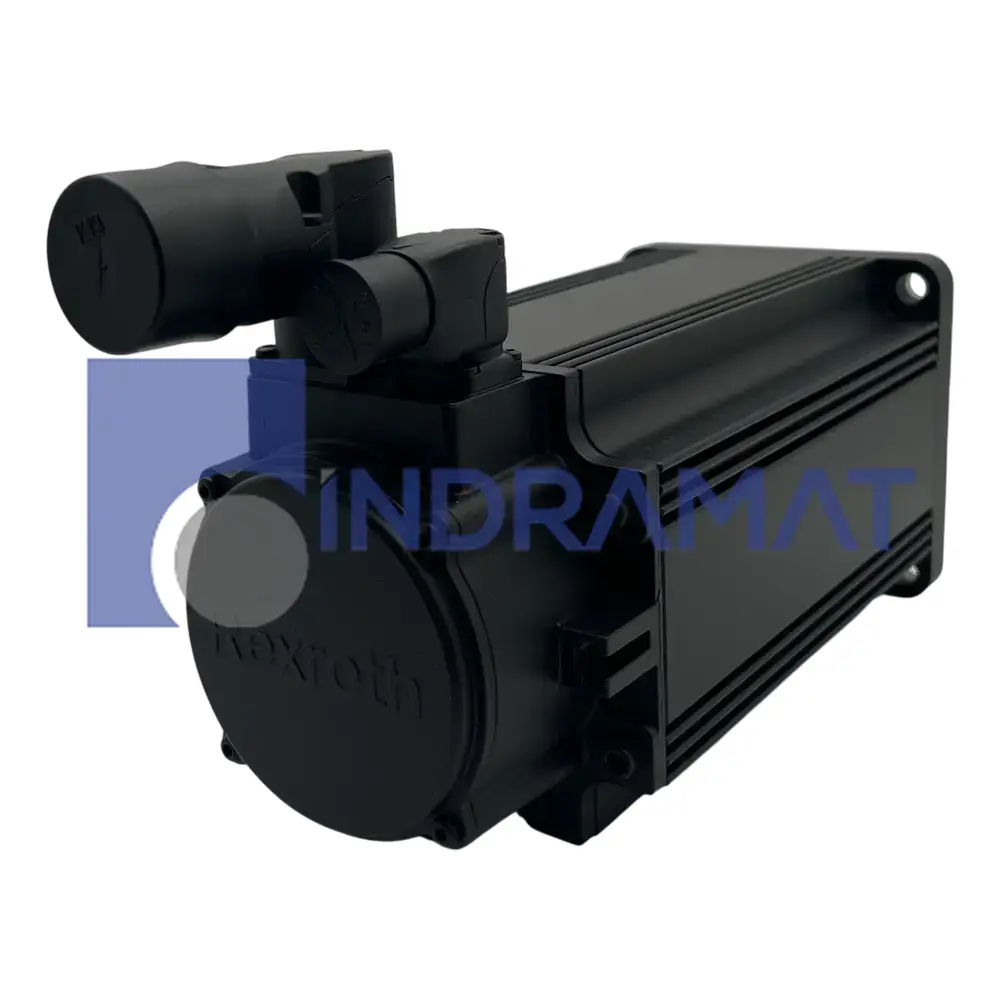

MSK070E-0300-NN-S1-UP1-NSNN Series Image

In Stock, Ships 2-3 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The Bosch Rexroth R911321986 (MSK070E-0300-NN-S1-UP1-NSNN) is an IndraDyn S synchronous servomotor engineered for precision motion control tasks. Featuring a four pole pair configuration and a shaft with keyway, this unit integrates high-density permanent magnets to maintain near-constant torque. The platform includes an optical, singleturn Hiperface encoder with 128 signal periods, a rotatable 240° encoder connector, and operates with natural convection cooling. Suitable for environments with exposure to water jets, oils, and noncorrosive particles, it delivers up to 65.0 Nm maximum torque and 25.0 Nm continuous torque (100 K), with a continuous standstill current of 16.7 A and a peak of 49.3 A. The design encompasses a holding brake rated at 23 Nm, motor length E, motor size 070, and supports both standard and explosion protection configurations. Winding inductivity is specified at 3,900 mH. Optimal operating temperature range is 0 to 40°C.

Technical Specifications

Type
Drive Control Platform

Use
Industrial motion control

Pole Pairs
4

Operating Temperature
0-40 degrees Celsius

Bearing type
Premium quality

Encoder
Advanced for precise speed control

Motor type
Synchronous

Suited for
Increased torque requirement

Magnet type
Permanent for high energy density

Installation
Flexible position

Common Misspellings

1620 Old Apex Road
Cary, NC 27513, USA

Toll Free: 1-888-551-3082
International: 1-919-443-0207

Fax: 1-919-867-6204

[email protected]

Shipping & Payment Options

Warranty

Indramat USA 1 Year Warranty

Repair

We offer a repair service for the MSK070E-0300-NN-S1-UP1-NSNN.

Exchange

Want to sell your MSK070E-0300-NN-S1-UP1-NSNN?
