DDS02.2-W015-BE06-01-FW

DDS Drive Controllers

  In Stock, Ships Today
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

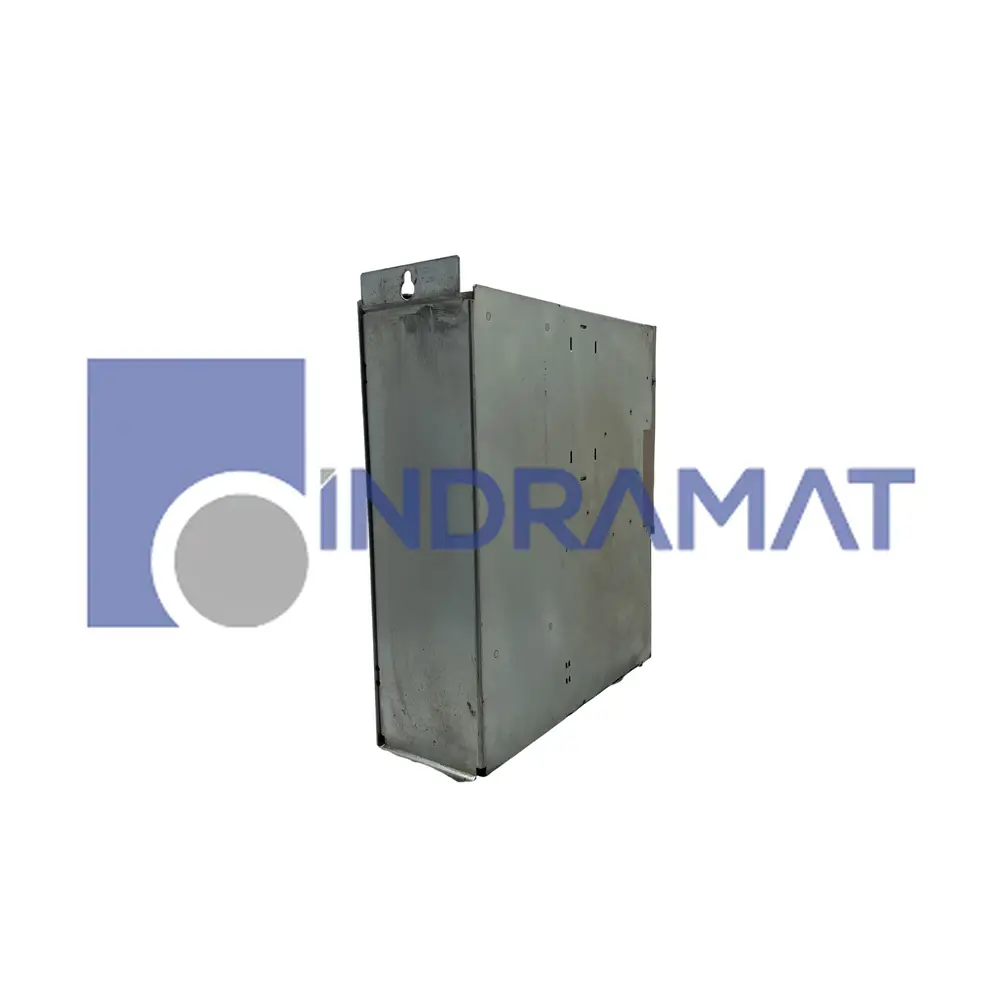

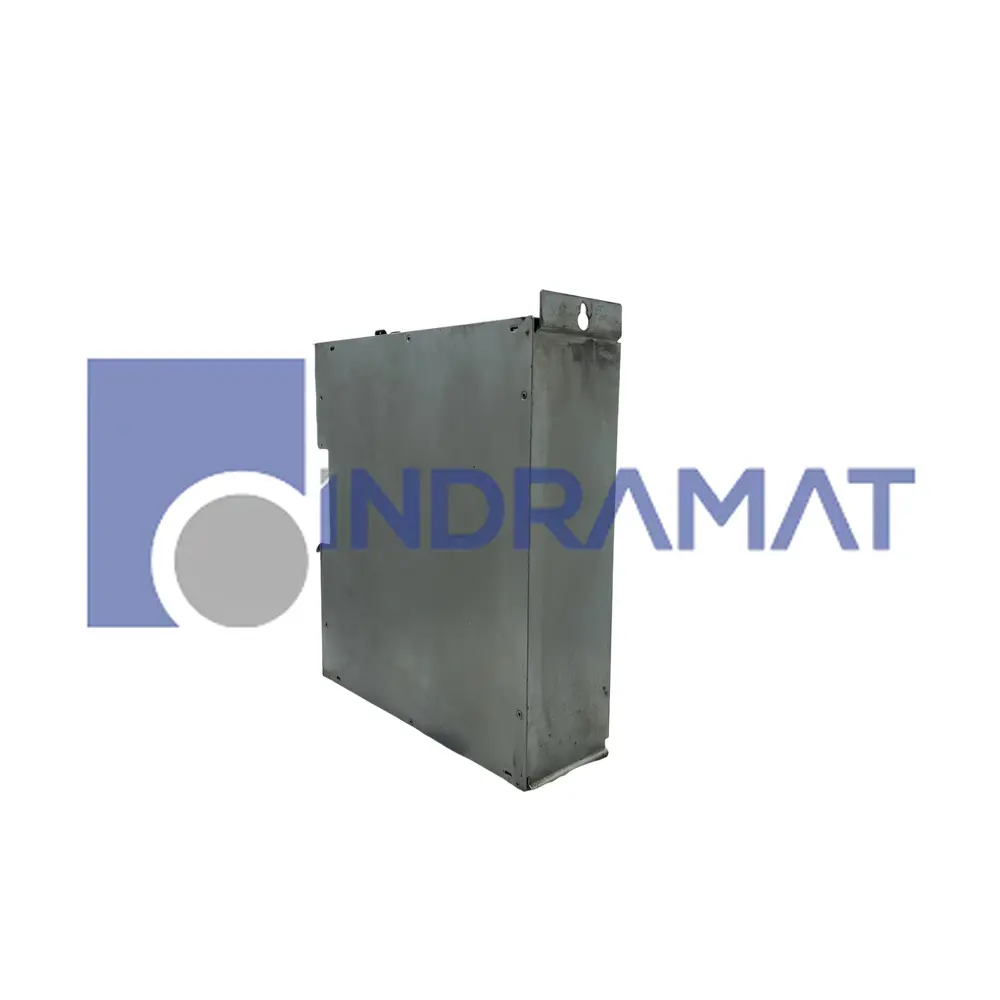

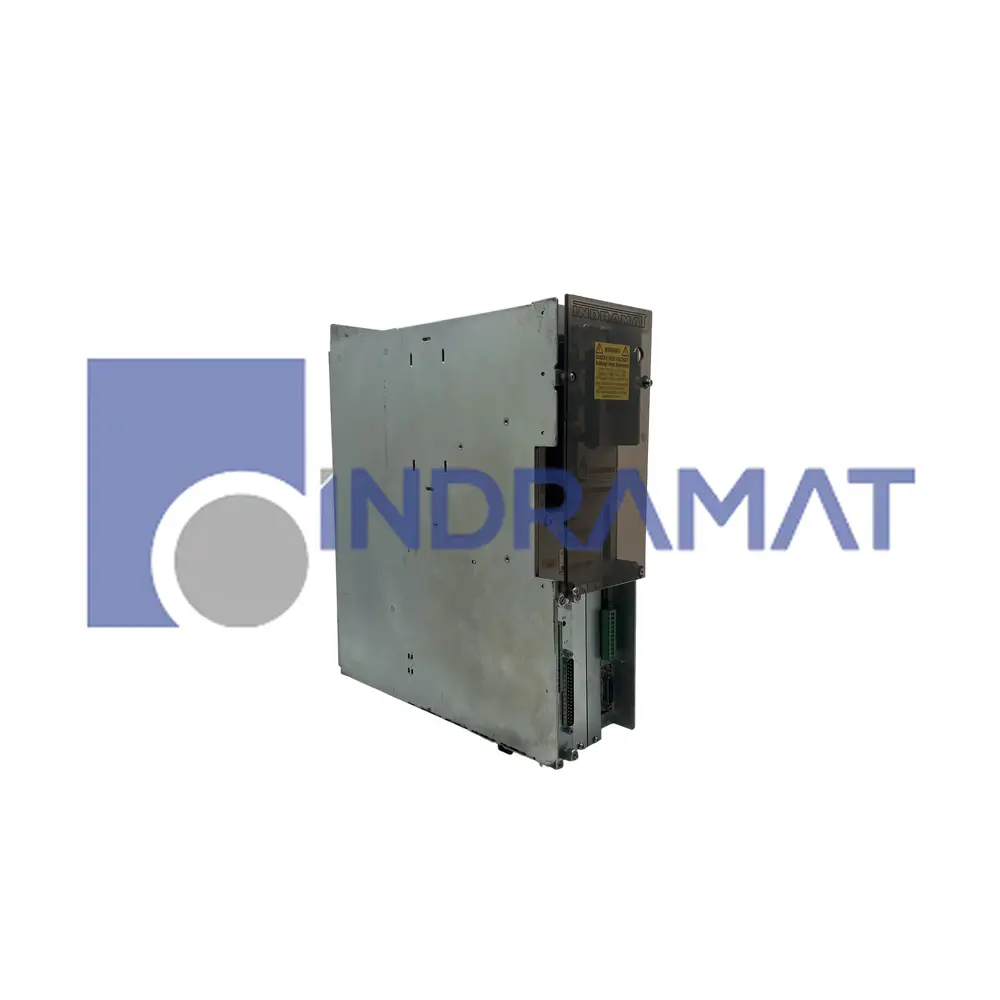

The Bosch Rexroth Indramat DDS02.2-W015-BE06-01-FW drive controller from the DDS Drive Controllers series features Internal Cooling, 15 A rated current, and supports Digital Servo and Resolver Feedback. It offers an RS 232 interface at X3, two analog diagnostic outputs, two control inputs (1.5 W, 20–30 VDC), and an integrated SERCOS interface. Designed for motors via the X4 feedback connector with a thermistor monitoring connection, it maintains IP20 protection per EN 60529 and operates up to 55 °C (reduced data). The controller uses manufacturer’s motor power cables (max 75 m length), must avoid direct Bb contact coil connections, and is shipped with shock-absorbing supports.

Technical Specifications

Cooling
Internal Cooling

Motor Feedback
Digital Servo and Resolver Feedback

Rated Current
15 A

Common Misspellings

Shipping & Payment Options
DHL-logo FexEd-logo UPS-logo freight-icon

AmEx-icon Mastercard-icon Visa-icon wire-transfer-icon
Warranty
1-year-warranty
Indramat USA 1 Year Warranty
Repair
product repair We offer a repair service for the DDS02.2-W015-BE06-01-FW.
