R911264397 (DDS02.1-W015-DA08-00)

DDS Drive Controllers

In Stock, Ships 2-3 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

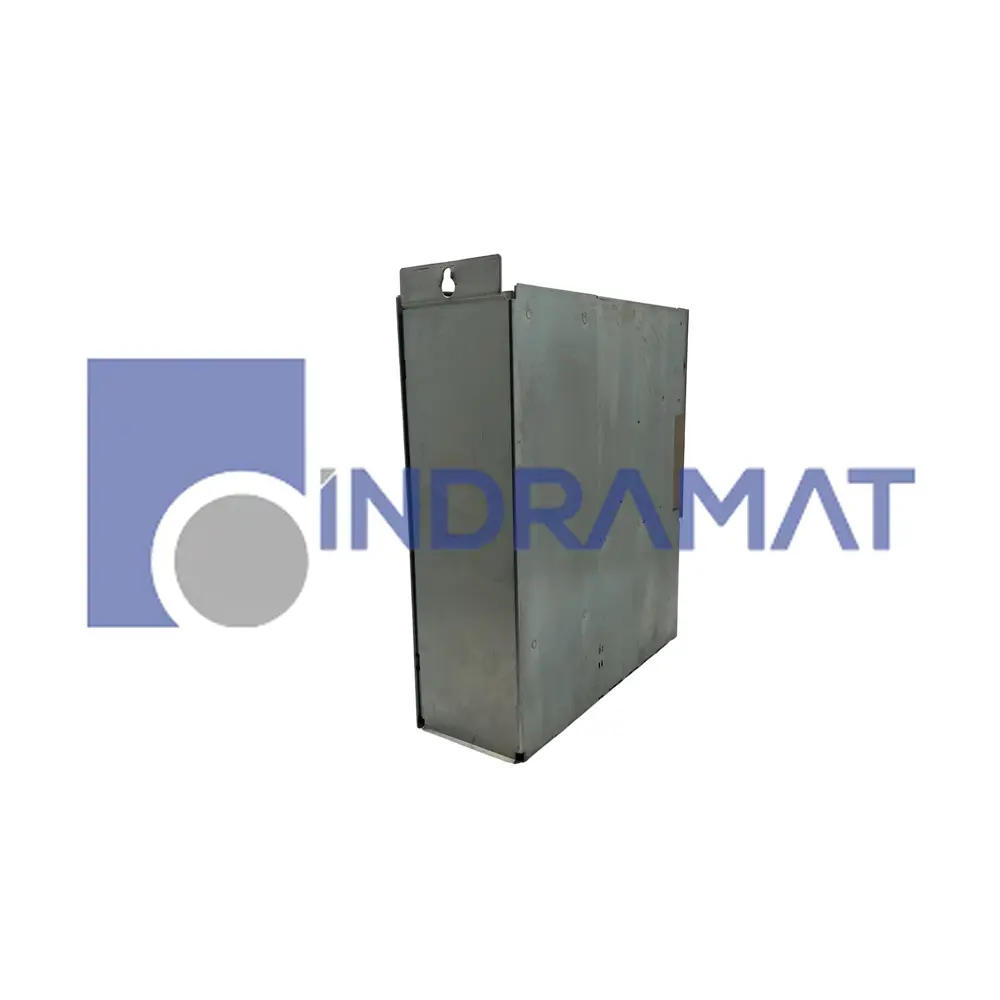

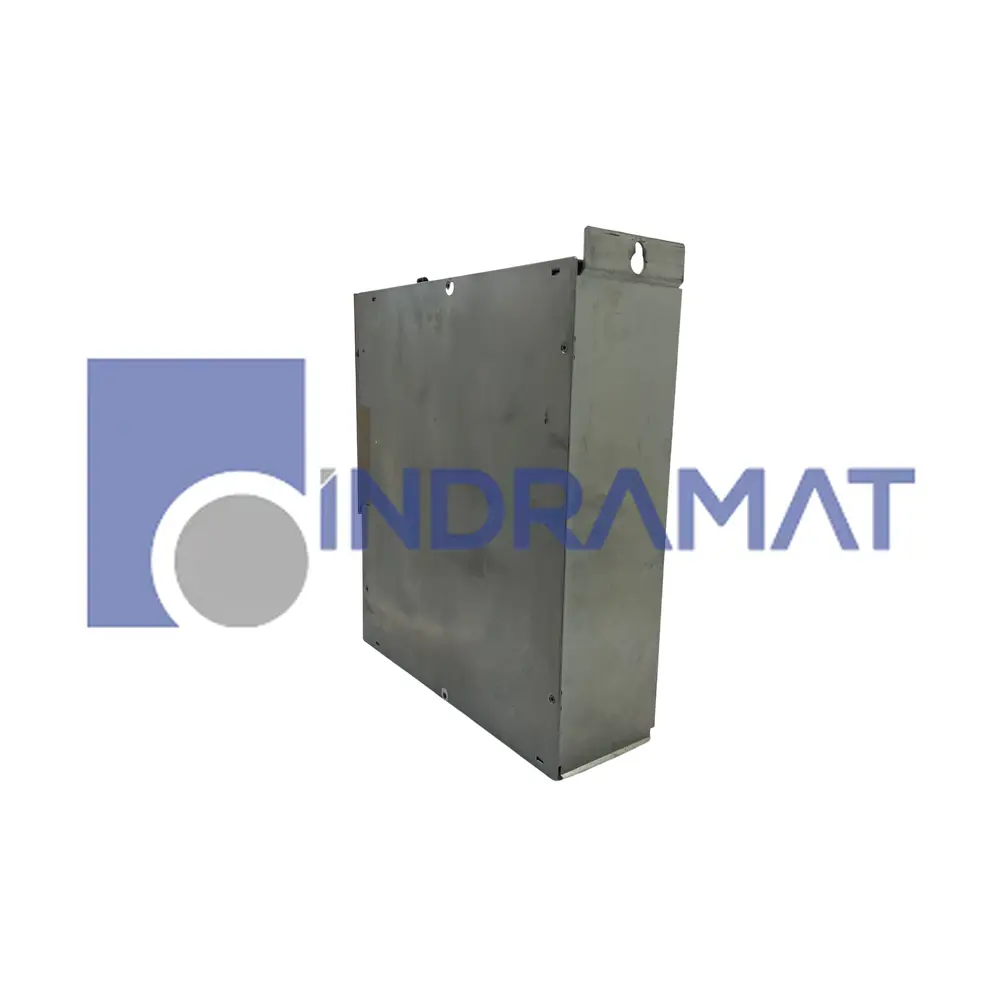

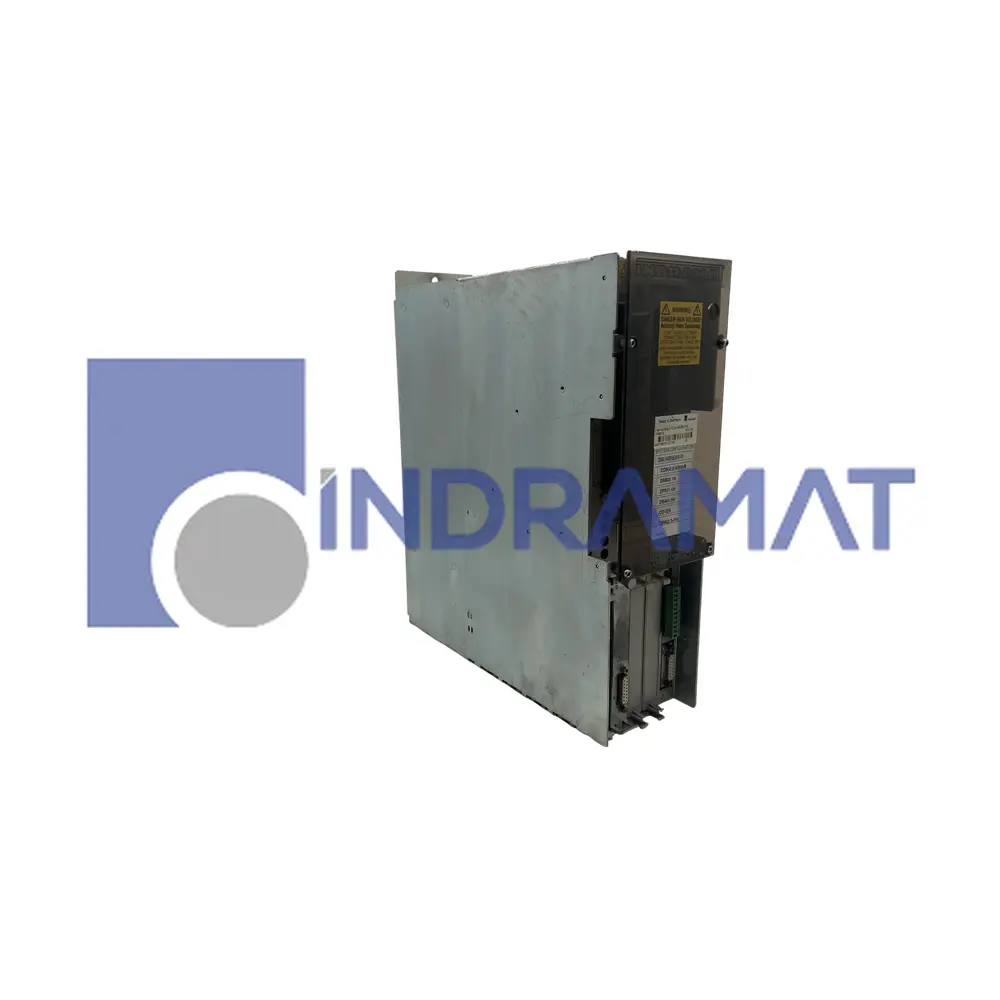

The Bosch Rexroth R911264397 (DDS02.1-W015-DA08-00) is a drive controller engineered for operation with MDD, MKD, and Linear AC motors. This module utilizes a regulated 24VDC supply through a TVM supply module and features a typical operating power loss of 150 to 500 mA. It integrates a firmware module in the U5 slot and supports a range of function-specific modules in U1–U4 slots, including an ANALOG interface for controller-to-motor communication. The device uses internal cooling by forced convection and is designed to function at ambient temperatures up to 45°C, humidity up to 90%, and installation heights up to 1000 m above sea level. The controller requires installation in an IP54-rated enclosure. It supports digital servo feedback and delivers a rated current of 15 A.

Technical Specifications

Product Type
Drive Controller

Operable Motors
MDD, MKD, and Linear AC motors

Required Supply Module
TVM

Control voltage
24VDC

Power loss
150 - 500 mA continuous

Design
Modular

Slots
U1 - U4 for modules, U5 for firmware

Protection
IP54 minimum

Interface Module
ANALOG

Restrictions
Only for use by electrically trained personnel

Cooling
Forced convection
