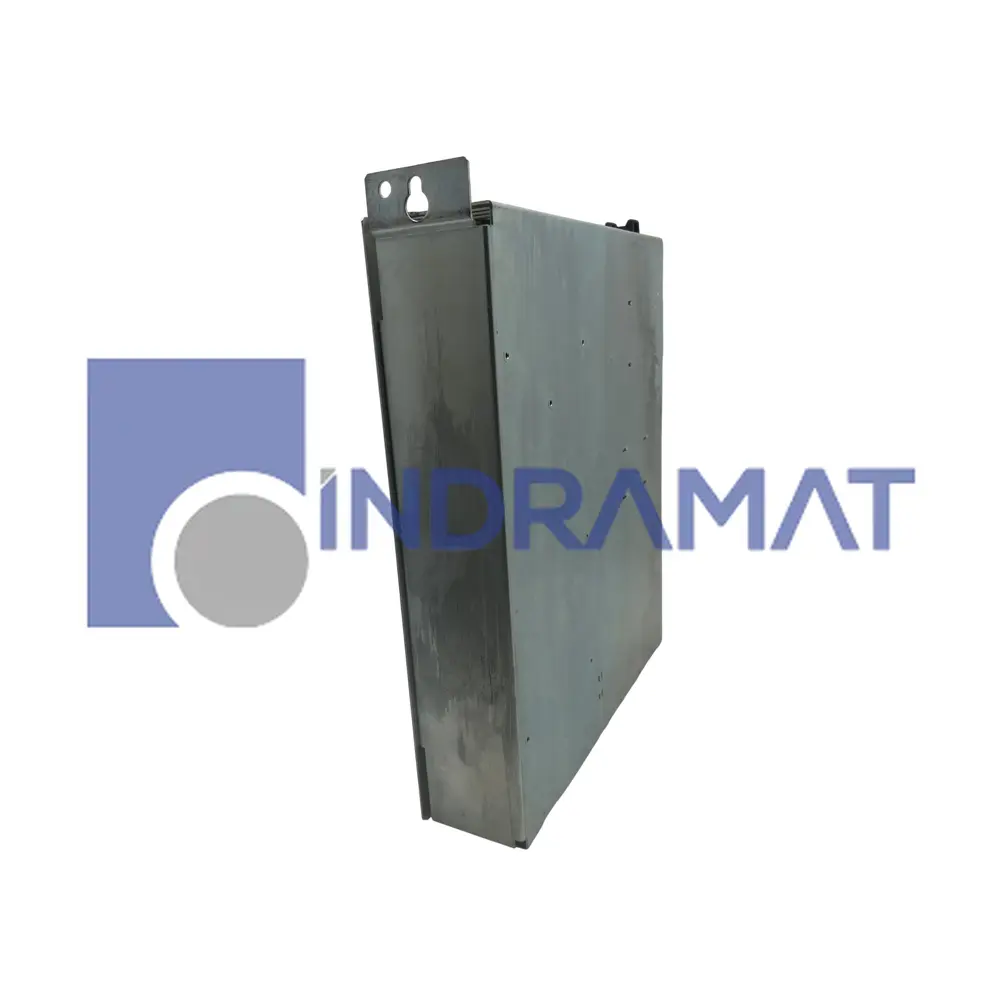

R911279352 (DDS03.2-W030-BE56-01-FW)

DDS Drive Controllers

In Stock, Ships 2-3 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The R911279352 (DDS03.2-W030-BE56-01-FW) is a drive controller designed to integrate with AC servos and main drives within a consolidated drive system using a single power supply unit. It features internal cooling and supports both digital servo and resolver feedback for process control and monitoring. The controller is equipped with a SERCOS interface communication module, has an IP20 ingress protection rating, and operates optimally at humidity levels up to 95% without condensation. Key electrical parameters include a steady current of 12 A, a rated current of 30 A, a bus voltage of 300 V DC, and typical energy utilization of 110 W at 15 A. The device operates within a temperature range of -30 to +85°C. Firmware is supplied separately for performance optimization.

Technical Specifications

Product Type
Drive Controller

Interface Communication Module
SERCOS

Bus Voltage
300 Volts DC

Continuous Current Rating
12 Amps

Power Consumption
110 Watts at 15 Amps of steady current

Operational Humidity Level
95 percent (if condensation does not occur)

Operational temperature
Specific not stated

Transport Temperature
Between -30 and +85 degrees Celsius

Feedback
Digital and Resolver

Dust Protection
IP 20 certified

Software Required
Separately obtained firmware

Usage
Process control and monitoring
