MHD090B-047-NP0-UN

MHD Synchronous Motors

Rated 4 stars (6 total reviews)
  In Stock, Ships Today
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

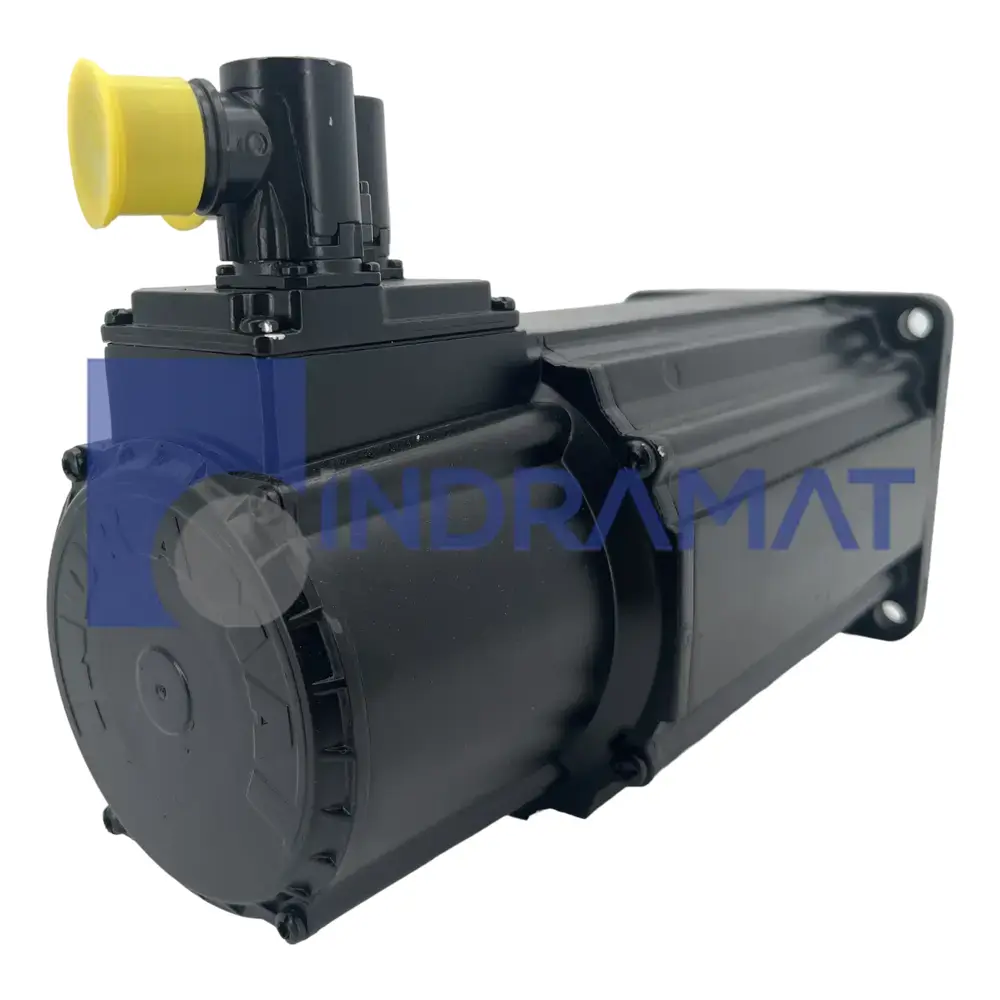

The MHD090B-047-NP0-UN by Bosch Rexroth Indramat is a high-performance servo motor from the MHD Synchronous Motors series designed for demanding motion control applications. This robust unit features a Motor Size of 090 and a precision-machined Flange size of 140 mm, ensuring compatibility with standard mounting interfaces. Its Winding Code of 047 reflects optimized coil windings for efficient electromagnetic performance under continuous operation. Manufactured to stringent industrial standards, this motor delivers reliable service in environments where precision and durability are essential. It provides a compact footprint and consistent mechanical interfaces for seamless integration into existing systems.



Boasting a Continuous Torque at Standstill of 12.0 Nm, the MHD090B-047-NP0-UN offers substantial holding capacity when stationary, while its Maximum speed rating of 5000 RPM enables rapid acceleration profiles. The motor’s Peak Current capability of 59.4 A facilitates short-duration torque surges, making it well-suited for dynamic load changes. Its Number of pole pairs is optimized at 4, achieving an ideal balance between torque density and speed range. Feedback precision is maintained via a high-resolution Encoder Type (Digital servo feedback), enabling accurate position detection and closed-loop control with minimal latency.



Operational resilience is enhanced through a liquid-based Housing Cooling Type, which dissipates heat effectively during high-duty cycles and prolongs component life. At a Mass of 14 kg, this servo motor strikes an optimal compromise between inertia and structural strength, allowing stable high-speed operation with controlled vibration. The keyed Shaft Design ensures secure torque transmission and easy coupling to driven loads. Additionally, the power cabling is routed through a connector that is Power Connection Direction turnable within a range of 270°, facilitating flexible cable management in confined assemblies.



Engineers will appreciate the MHD090B-047-NP0-UN’s broad compatibility with standard servo drives and its straightforward tuning routines, reducing commissioning time in automated machinery. This servo motor integrates seamlessly into multi-axis gantry systems, pick-and-place robots, and CNC equipment, supporting synchronized motion profiles and high cycle counts. Its standardized mechanical dimensions and electrical interfaces simplify upgrade paths and spare-parts stocking. The result is a versatile, high-reliability solution that boosts throughput and minimizes downtime across a wide array of industrial automation applications.

Technical Specifications

Holding Brake
Without holding brake

Housing Cooling Type
Liquid cooling

Encoder Type
Digital servo feedback (HSF)

Type of Position Detection
Relative

Continuous Torque at Standstill
12.0 Nm

Motor Length
B

Motor Size
090

Flange size
140 mm

Shaft Design
Keyed Shaft

Power Connection Direction
turnable within a range of 270°

Product Type
Servo Motor

Winding Code
047

Maximum speed
5000 RPM

Mass
14 Kg

Number of pole pairs
4

Peak Current
59.4 A

Winding inductivity
10.1 mH

Maximum installation elevation
1000 m above MSL
