MHD090B-047-PP0-UN

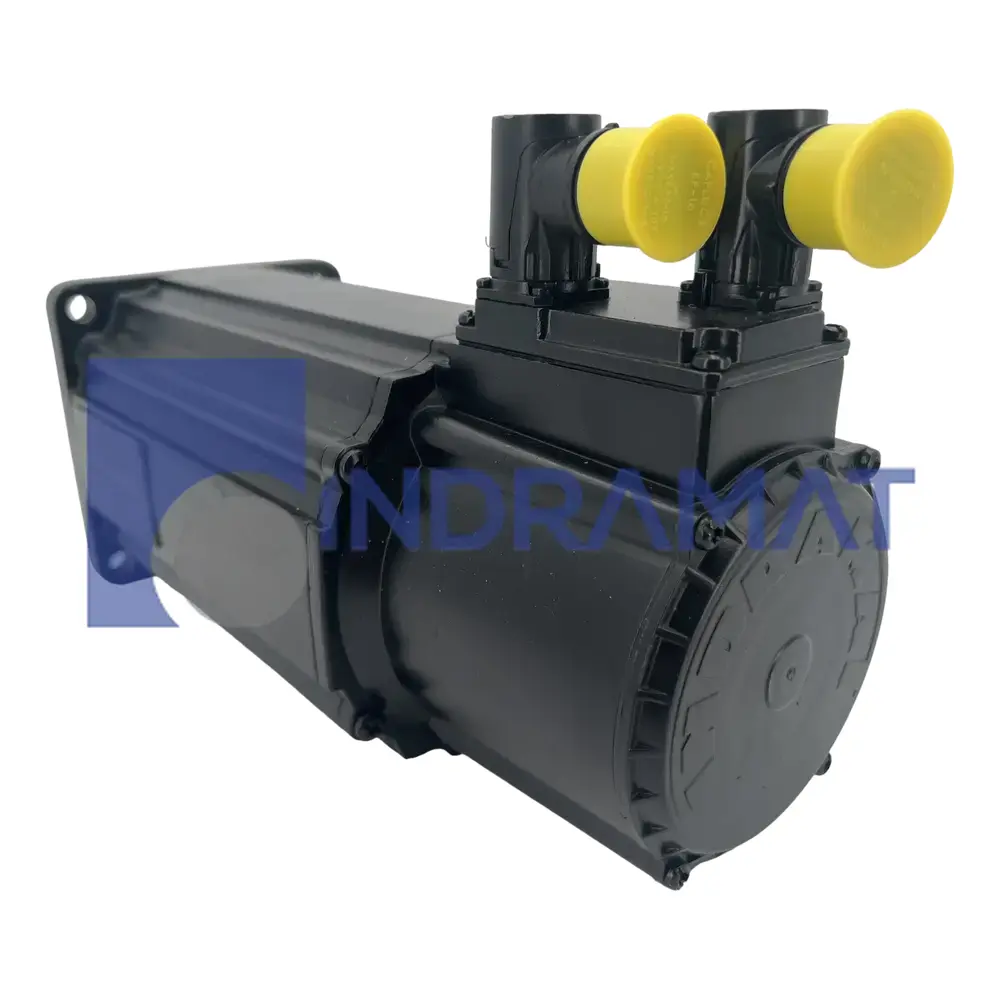

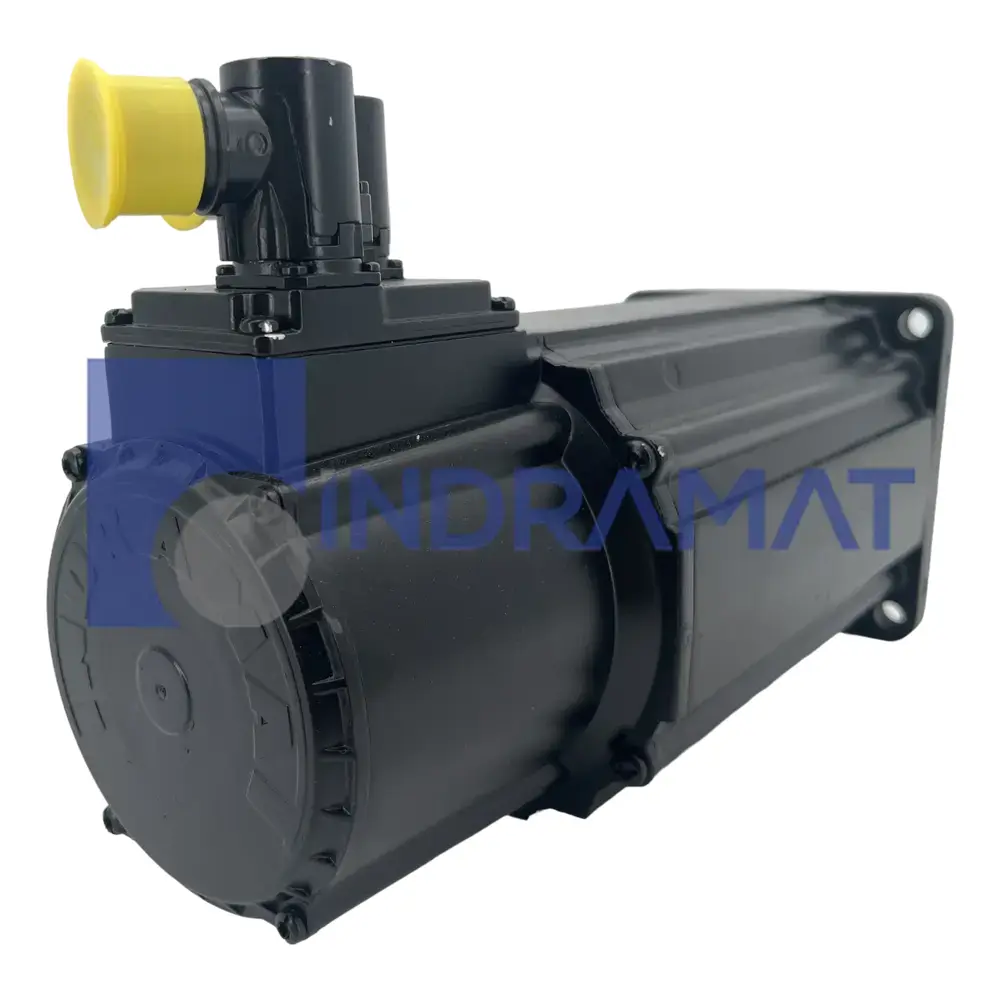

The Bosch Rexroth Indramat MHD090B-047-PP0-UN from the MHD Synchronous Motors series is a precision-engineered servo motor Product Type Servo Motor designed for demanding motion-control applications. With a Motor Size 090 frame and a compact Motor Length B, it delivers robust performance and high torque density while maintaining a small footprint for space-constrained installations. The stator windings employ a Winding Code 047 that is optimized for exceptional thermal efficiency, and the assembly features liquid-cooling via a Housing Cooling Type Liquid cooling circuit to sustain high-power operation under continuous load. A Centering diameter 110 mm mated to a Flange size 140 mm provides accurate positioning and reliable mounting, ensuring minimal runout and mechanical play in high-speed cycles.

Continuous torque at standstill is rated at Continuous Torque at Standstill 12.0 Nm, enabling precise holding and rapid dynamic response in servo-driven axes. Position feedback is handled through an Type of Position Detection Absolute (>4096 revolutions) system paired with an integrated Encoder Type Digital servo feedback w/ integrated encoder, delivering high-resolution, jitter-free feedback for advanced closed-loop control. The rugged Shaft Design Keyed Shaft is equipped with a Shaft Seal Yes to guard against dust and fluids, while the absence of a brake (Holding Brake Without holding brake) reduces mechanical complexity and lowers maintenance requirements. Flexible cable routing is achieved via Power Connection Type Power and feedback connectors that can be Power Connection Direction turnable within a range of 270°, simplifying installation in multi-axis cabinet layouts.

Engineered for seamless integration into industrial automation networks, the MHD090B-047-PP0-UN combines a hardened housing and precision machining to withstand shock, vibration, and thermal cycling in factory environments. Its liquid-cooled design and high-resolution encoder technology ensure consistent cycle-to-cycle accuracy across high-duty applications such as robotic arms, CNC machines, and packaging lines. Bosch Rexroth Indramat’s strict quality standards guarantee long-term reliability, efficient serviceability, and minimized downtime in advanced motion-control systems.
