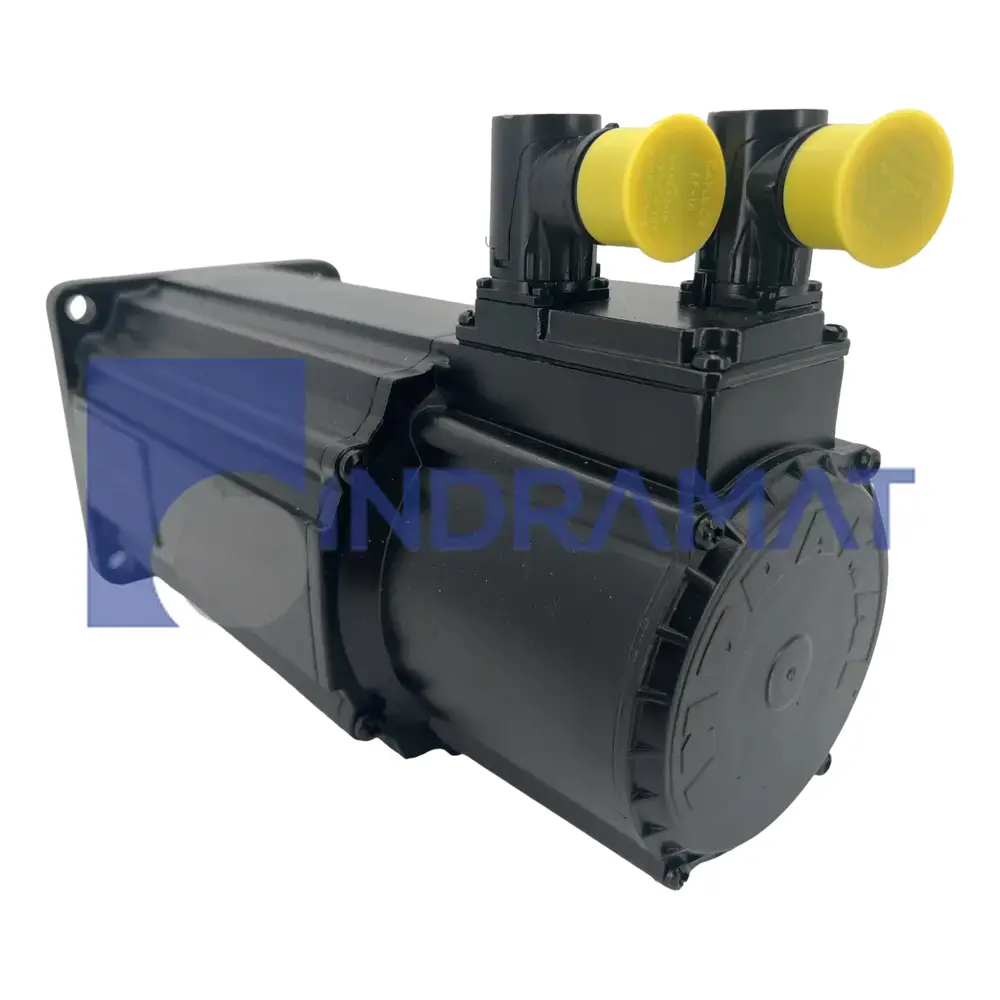

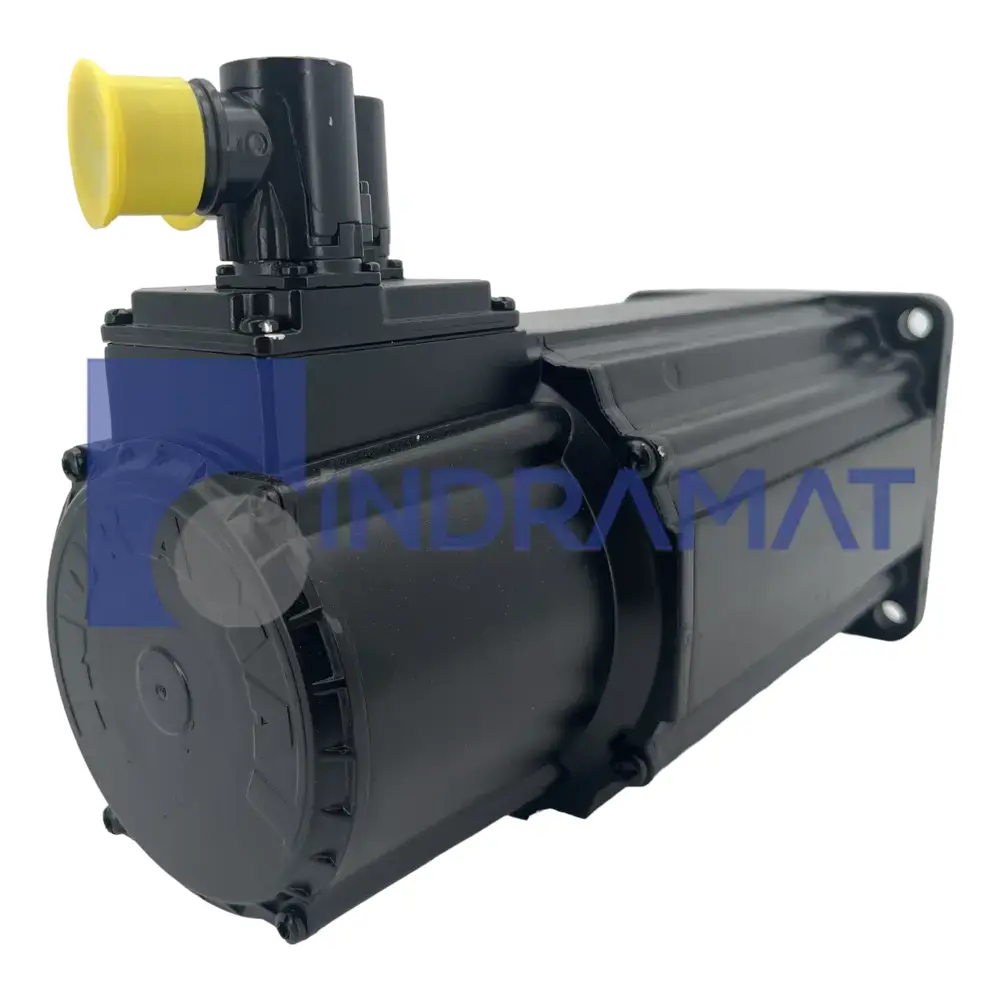

The R911276758 (MHD090B-058-PP1-UN) is a Bosch Rexroth synchronous servo motor equipped with digital servo feedback and an integrated absolute multiturn encoder supporting position detection over more than 4096 revolutions. This motor offers housing cooling via liquid cooling, as well as naturally cooled and surface cooled versions, with rated torques ranging from 4.2 Nm to 13.4 Nm and rated output from 2.1 kW to 7.0 kW depending on the version. Key mechanical features include a keyed shaft with DIN 6885-1 keyway, shaft seal, 11.0 Nm holding brake, 140 mm flange, 110 mm centering diameter, and a turnable power connection within a 270° range. The rated speed is 4000 rpm at 267 Hz frequency.

Technical Specifications

Cooling Variants
Naturally Cooled and Surface Cooled

Overtemperature Settings
60K and 100K

Rated Torque (Natural Cooling)
4.2Nm (60K), 8.9Nm (100K)

Rated Performance (Natural Cooling)
2.1kW (60K), 4.9kW (100K)

Rated Torque (Surface Cooling)
13.4Nm

Rated Performance (Surface Cooling)
7.0kW

Nominal Speed
4000 RPM

Rated Frequency
267 Hz

Number of Poles
4

Weight
14 kg

Driveshaft Design
Includes DIN 6885-1 Keyway

Holding Brake Capacity
11.0Nm

Encoder Revolution Tracking
Up to 4096 Revolutions.

Frequently Asked Questions

Does MHD090B-058-PP1-UN include a brake system?

Yes, MHD090B-058-PP1-UN has a holding brake with 11 Nm torque.

What is the centering diameter of MHD090B-058-PP1-UN?

The MHD090B-058-PP1-UN uses a 110 mm centering diameter.

What motor size does MHD090B-058-PP1-UN represent?

The MHD090B-058-PP1-UN is size 090.

Where does the power connector face on MHD090B-058-PP1-UN?

The MHD090B-058-PP1-UN connector can be turned within 270°.

What encoder system is used in MHD090B-058-PP1-UN?

The encoder in MHD090B-058-PP1-UN is digital with integrated feedback.
