R911277130 (MHD090B-035-NP0-UN)

Name: R911277130 (MHD090B-035-NP0-UN)
Brand: Indramat Motors
SKU: MHD090B-035-NP0-UN
Price: 737.00 USD
Availability: InStock
Rating: 4.1 (14 reviews)

MHD Synchronous Motors

Rated 4.1 stars (14 total reviews)

Front Left

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Current response time:

4 Minutes 6 Seconds

Phone:
1-888-551-3082

Email:
sales@indramat-usa.com

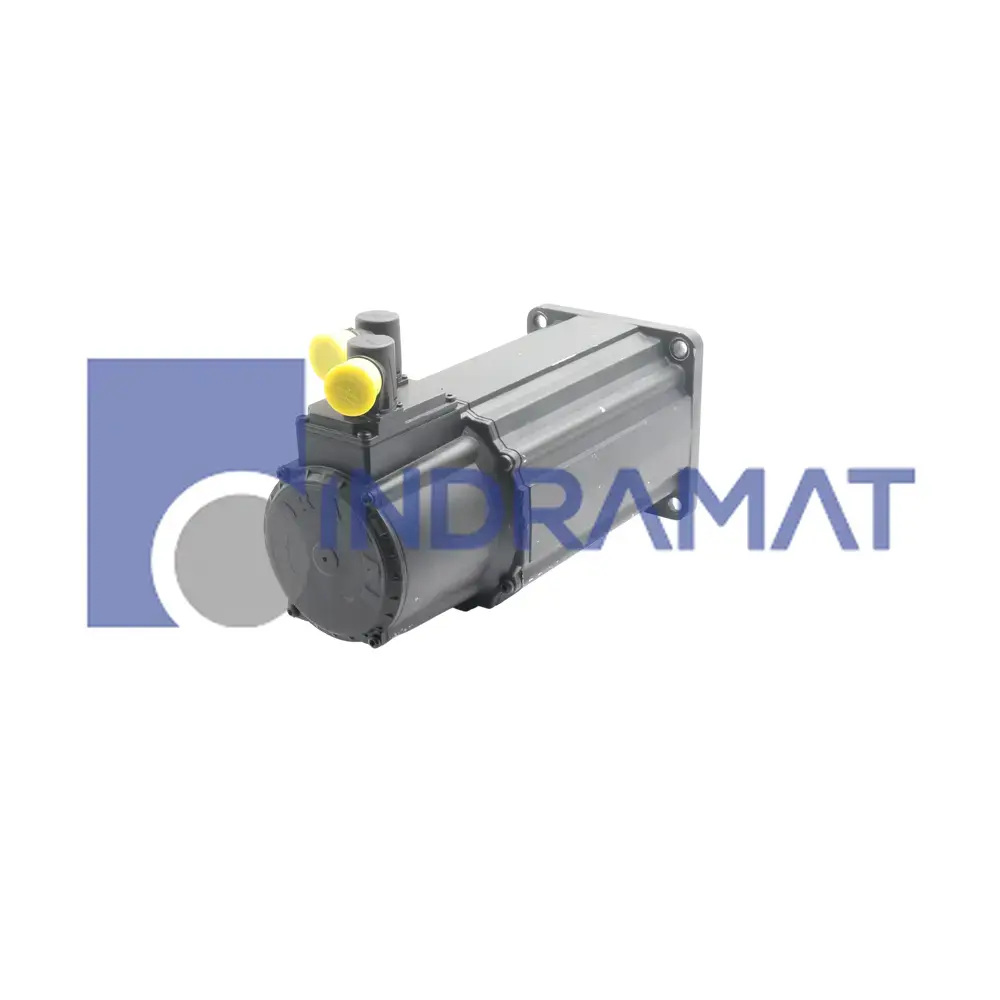

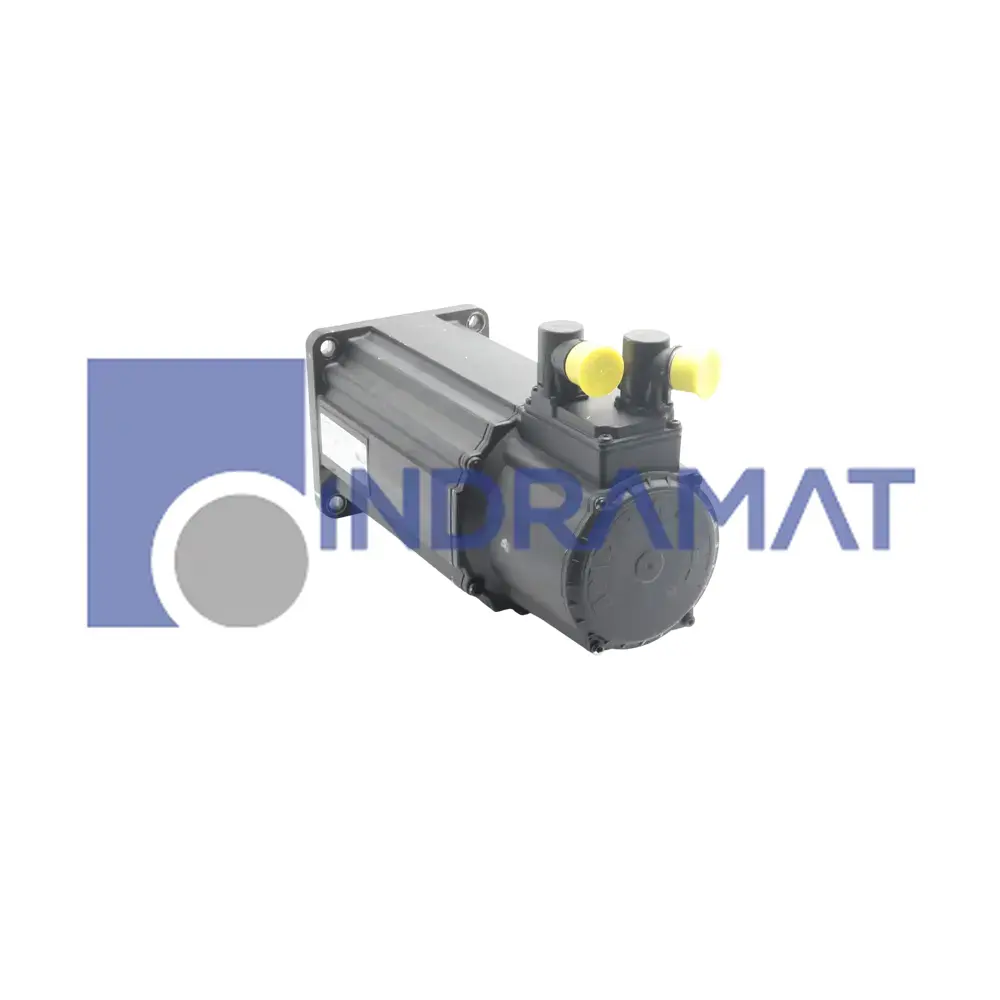

The Indramat MPN R911277130 (MHD090B-035-NP0-UN) is a low-inertia, permanent magnet servo motor designed for use in automation and motion control applications. It features electronic commutation, a brushless design, and pre-greased bearings for reduced maintenance. The motor has a liquid-cooled housing, a keyed shaft with shaft seal, and supports a maximum speed of 5000 RPM with a rated continuous torque of 12.0 Nm. It utilizes digital servo feedback (HSF) for relative position detection, includes a temperature monitoring system, and incorporates a DIN 42948 flange for flexible mounting. The power connection is turnable within 270°, mass is 14 kg, centering diameter is 110 mm, motor size is 090, motor length is B, peak current is 49.5 A, and it is rated for installation up to 1000 m above mean sea level. The motor is supplied without a holding brake.

Technical Specifications

Product Type
Permanent Magnet Motor

Communtation
Electronic

Design
Brushless

Maintenance
Maintenance-free

Bearing
Pre-greased for full service life

Environmental resistance
Designed to work under adverse conditions

Temperature monitoring
Present to protect from overload

Heat dissipation
Present for high overload capability

Installation
Can be installed in any position

Flange
DIN 42948

Radial load capability
High

Cabling
Multiple designs available

Frequently Asked Questions

What are the advantages of using liquid cooling in servo motors like the MHD090B‑035‑NP0‑UN?

Liquid cooling enables higher thermal dissipation, allowing the motor to sustain higher torque without overheating. It also permits compact motor designs in thermally constrained environments.

Can the MHD090B‑035‑NP0‑UN be installed above 1000 meters elevation?

It is optimized for use up to 1000 m; above this, air pressure and cooling efficiency drop, potentially requiring derating. Custom installation adjustments or additional cooling may be needed for higher elevations.

Why is a digital servo feedback (HSF) encoder important in automation?

HSF encoders offer precise, high-resolution relative positioning, essential for closed-loop control in fast, dynamic systems. They support accurate velocity and torque regulation in real-time.

What implications does the 4-pole pair design have on motor performance?

How should wiring be handled for motors with separate power and feedback connectors?

Common Misspellings

MHD 090B 035 NP0 UN

MHD 090B-035-NP0-UN

MHD-090B-035-NP0-UN

MHD090B035NP0UN

MHDO9OB-O35-NPO-UN

MHD090B 035 NP0 UN

mhd090b-035-np0-un

MHD90B-035-NP0-UN

Internal Product Review

The MHD090B‑035‑NP0‑UN is a liquid‑cooled synchronous servo motor from Bosch Rexroth Indramat. It equips keyed and sealed shaft, digital HSF encoder, 4 pole pairs, and weighs 14 kg. It is commonly found in precision motion systems in printing, packaging, textile, and machine tool automation.
