R911282100 (MHD090B-047-NG0-UN)

MHD Synchronous Motors

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

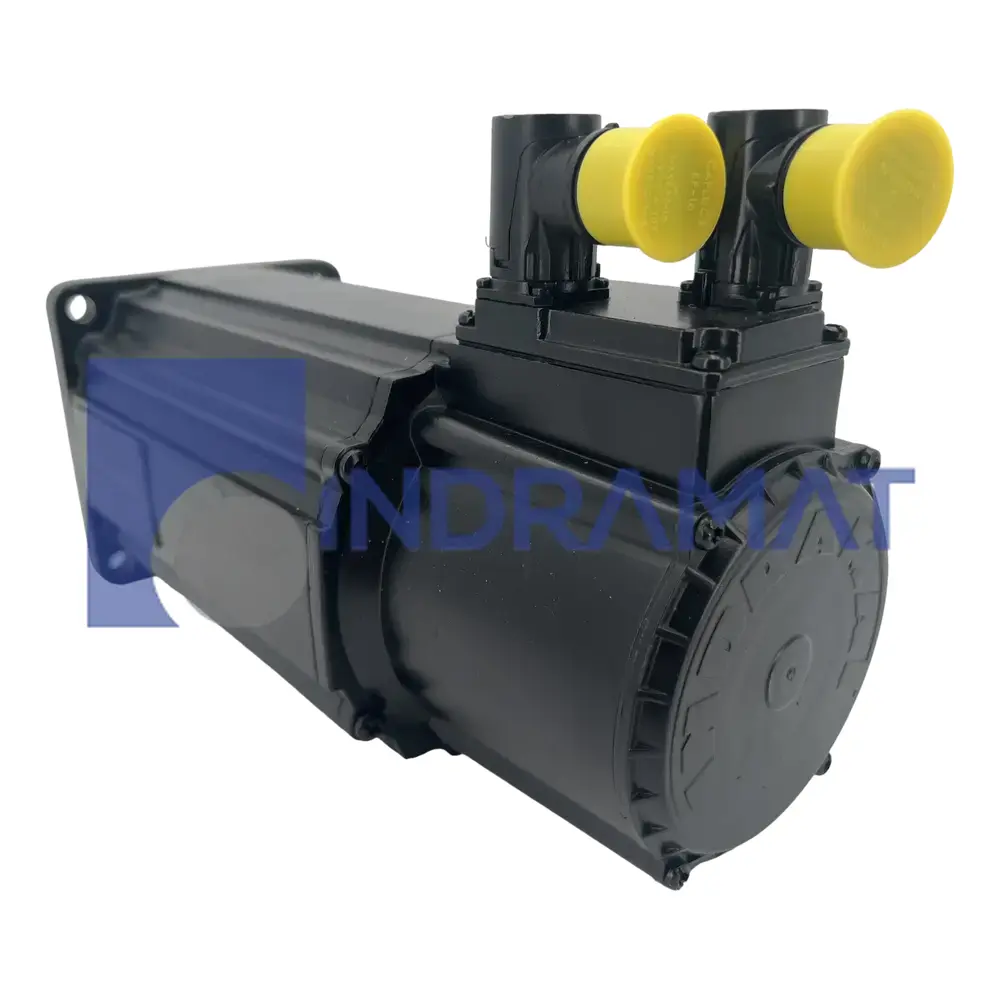

The R911282100 (MHD090B-047-NG0-UN) is a Bosch Rexroth MHD Digital AC servo motor designed for applications requiring high dynamic performance, such as printing machines, handling systems, and robotics. It provides continuous torque of 12.0 Nm at 60K and 13.2 Nm at 100K, with a maximum torque of 43.5 Nm. The continuous current is 13.2 A at 60K and 16 A at 100K, with a peak current of 59.0 A and peak torque of 14.4 Nm. The motor reaches a nominal speed of 3500 rpm and a maximum speed of 5000 rpm, operates with an IP65 protection rating, and is suitable for environments up to 1000 m above sea level. It features a flange size of 140 mm, centering diameter of 110 mm, plain shaft with shaft seal, digital servo feedback encoder (HSF), and supports natural convection cooling with optimal function at ambient temperatures from 0°C to +40°C. It does not include a holding brake and uses turnable power and feedback connectors.

Technical Specifications

Product Type
Servo Motor

Part of
MHD Digital AC Motor

Continuous Torque
12.0Nm (at standstill 60k), 13.2Nm (at 100k)

Continuous Current
13.2A (at standstill 60k), 16A (at 100k)

Maximum Torque
43.5 Nm

Protection Type
IP65

Nominal Speed
3500 rpm

Maximum Speed
5000 rpm

Time Constant
60 min

Peak Current
59.0A

Maximum Torque at Peak Load
14.4 Nm

Maximum Setup Height
1000 above sea level

Attachment
Direct to Pinions and Belt Pulleys

Permissible Ambient Temperature
0 to +40

Cooling
Natural Convection
