R911285881 (MHD090B-047-PG1-UN)
MHD Synchronous Motors
Technical Specifications
Product Type
MHD Synchronous Motors
Motor Frame Size
140mm Flange Size
Centering Diameter
110mm
Motor Size
12Nm
Winding Code
47
Shaft Type
Plain Shaft with Sealing Ring
Protection Design
Use Without Safe Blowers
Holding Brake Capacity
22Nm
Cooling Method
Liquid Cooling
Compliance
Global Standards for Motors
Sustainability
High
Performance
Superior
Shipping
Global
Motor Industry Experience
Years.
Frequently Asked Questions
Why would you choose a sealed plain shaft instead of a keyed or splined one?
A sealed plain shaft minimizes contamination risk and wear in environments with dust or coolant. It's ideal where smooth coupling and maintenance simplicity are priorities.
Does the MHD090B-047-PG1-UN require an external encoder for position tracking?
No, it has an integrated encoder with absolute position detection. This simplifies setup and avoids encoder alignment or external wiring.
How does the integrated feedback system improve motion control precision?
It provides high-resolution, multi-turn absolute feedback directly from the motor. This ensures accurate positioning and smooth interpolation, especially in complex motion profiles.
What does a continuous standstill torque of 12 Nm imply in a real-world application?
It means the motor can hold or resist mechanical loads of up to 12 Nm indefinitely without overheating. This is critical for applications like vertical axes or static clamping systems.
Can the MHD090B-047-PG1-UN be used in space-constrained control cabinets?
Yes, its compact motor length and integrated connectors reduce footprint. This makes it suitable for tightly packed or modular machines.
Common Misspellings
MHD90B-047-PG1-UN
MHD 090B-047-PG1-UN
MHD-090B-047-PG1-UN
MHD090B 047 PG1 UN
MHD090B-047-PGI-UN
MHD090B047PG1UN
MHDO9OB-047-PG1-UN
mhd090b-047-pg1-un
MHD090B047PG1UN
MHD090B 047 PG1 UN
Internal Product Review

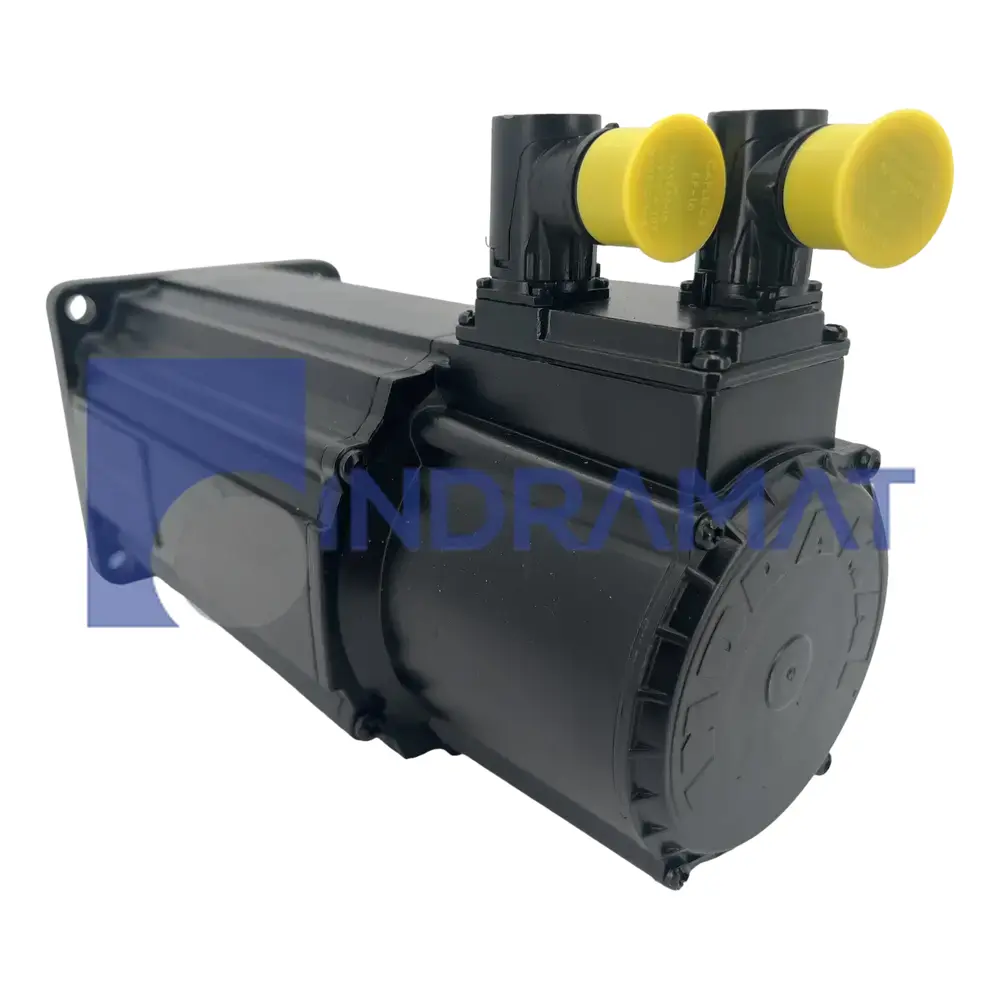

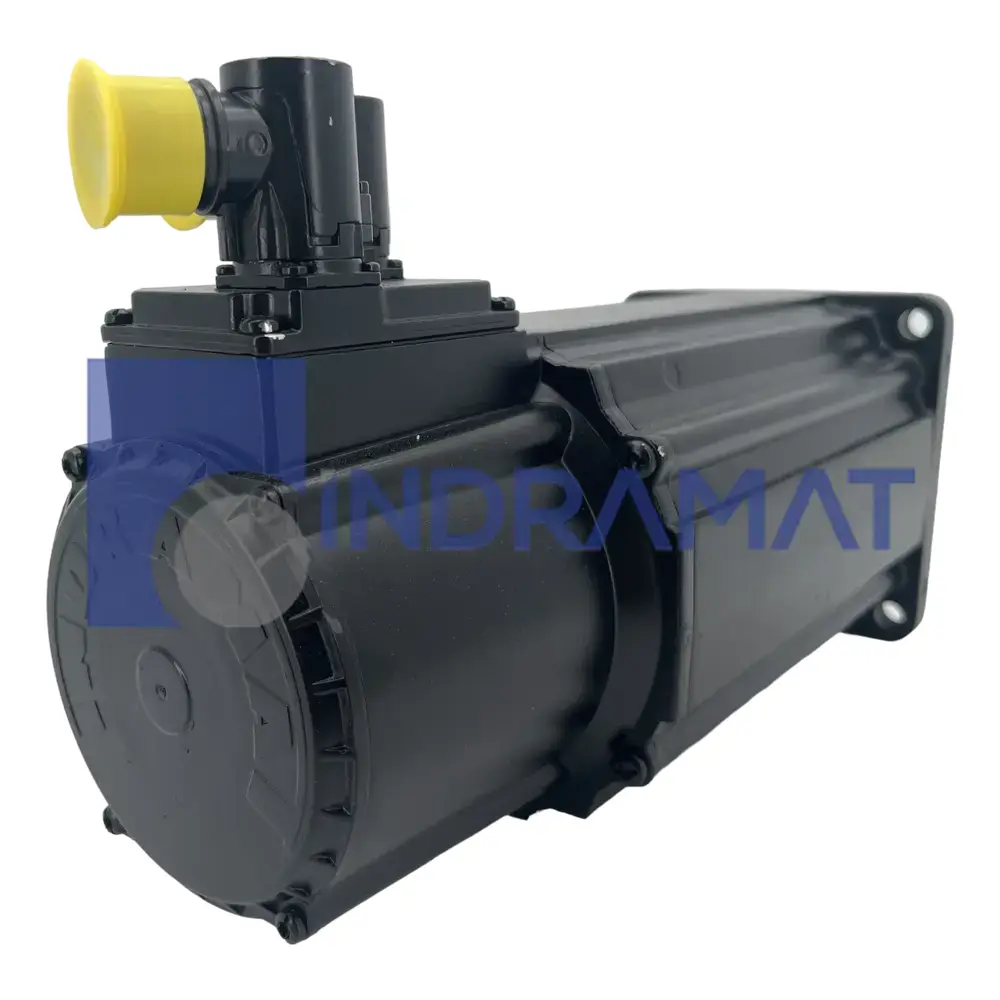

The Bosch Rexroth Indramat MHD090B‑047‑PG1‑UN is a liquid‑cooled servo motor with digital absolute feedback via integrated encoder. It offers 12.0 Nm continuous torque, a plain sealed shaft, 140 mm flange / 110 mm centering, and 270° rotatable power/feedback connector. It finds use in CNC machines, robotics, automated assembly and motion control systems.
