R911292011 (MHD093B-035-NG1-RA)

MHD Synchronous Motors

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

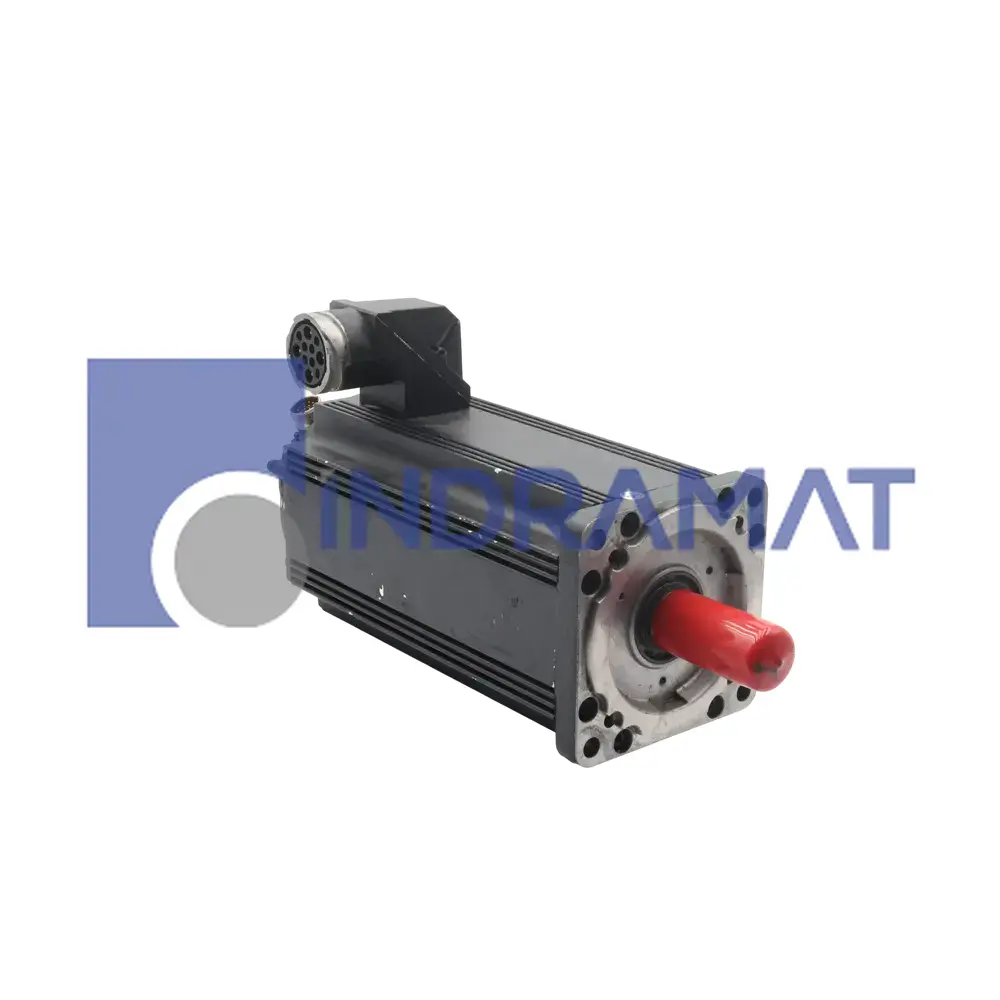

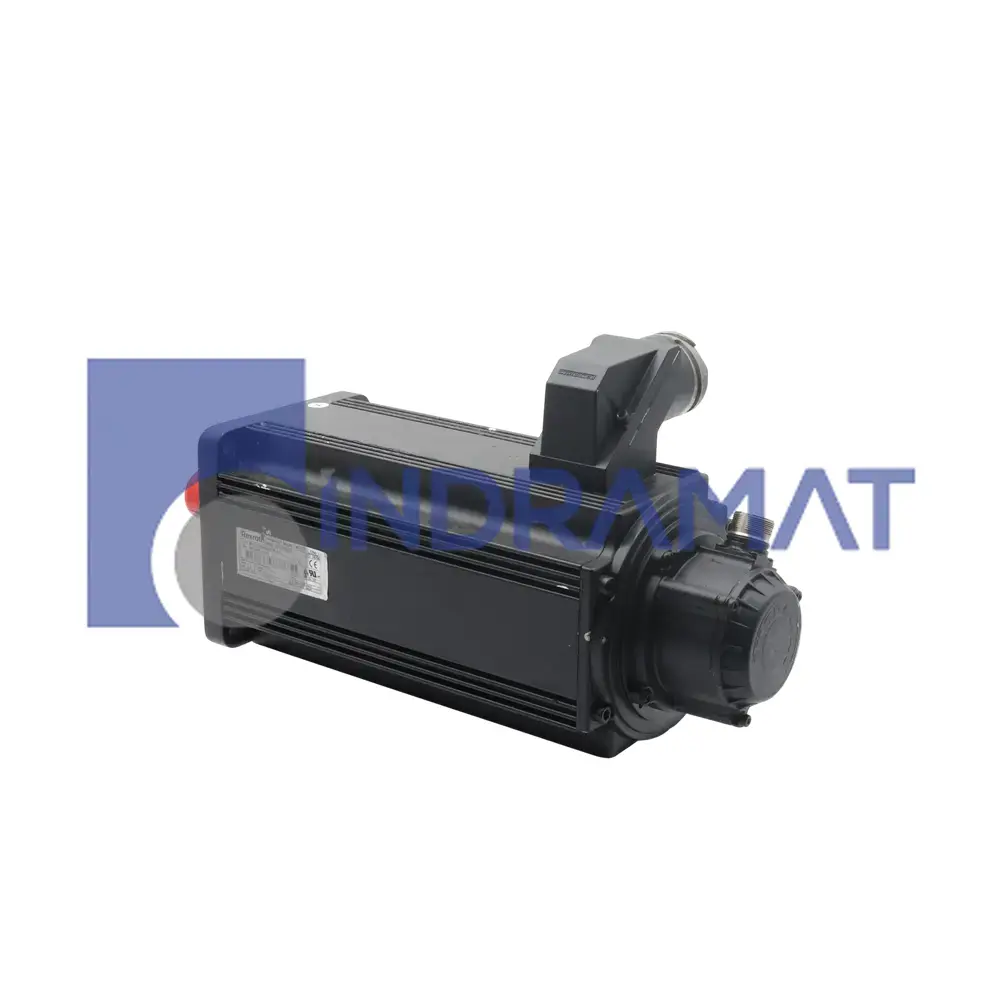

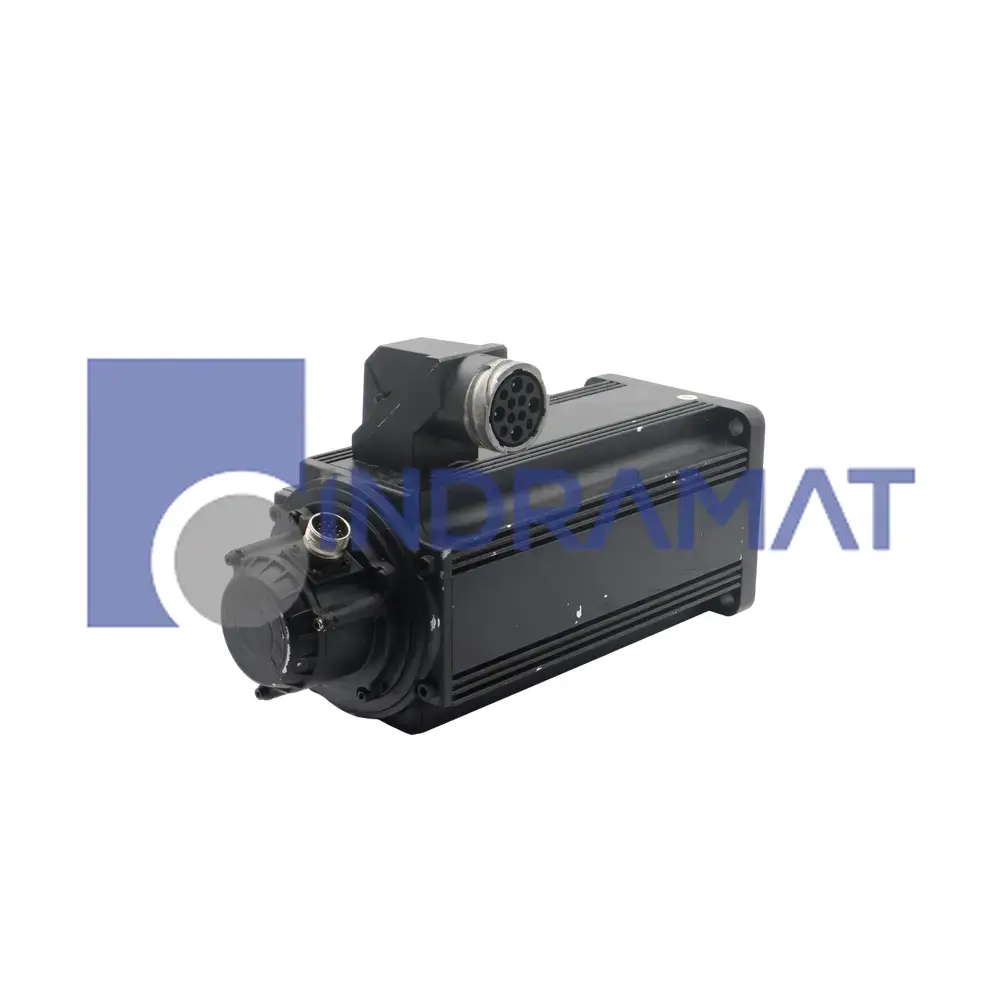

The Rexroth Indramat R911292011 (MHD093B-035-NG1-RA) is an industrial synchronous servo motor designed for applications requiring precise high-torque output. It features a continuous standstill torque of 17.5 Nm, maximum torque up to 60 Nm at 45.9 A, and a torque constant of 1.29 Nm/A at 20°C. The motor achieves speeds up to 4500 RPM and incorporates a plain shaft with a shaft seal and ball bearings rated for approximately 30,000 hours under optimal conditions. Its design includes a 356 mm length, 140/150 mm flange, 130 mm centering diameter, and 14.5 kg weight. The encoder is digital servo feedback with relative position detection. The unit utilizes natural convection cooling and is equipped with a 22 Nm holding brake. Power connection is via right-facing connector. Winding code is 035.

Technical Specifications

Type
Industrial Synchronous Motor

Environmental_Resistance
High

Torque_Output
High

Speed_Range
Broad

Ball_Bearings_Service_Life
30000 hours

Special_Signs_and_Symbols
Yes

Torque_Constant@20°C
1.29 Nm/A

Voltage_Constant@20°C
112 V/1000 revolutions

Maximum_Input_Current
45.9 amperes

Torque_Output@Max_Current
60 Nm

Peak_Speed
4500 rpm

Noise_Level
<75 dB

Length
356 mm

Thickness
140 mm

Weight
14.5 kg

Heat_Regulation
Natural convection/External fan.

Frequently Asked Questions

Common Misspellings

Internal Product Review

The MHD093B-035-NG1-RA is praised for steady functionality and dependable response. Users appreciate how well it blends into different systems. Its smooth operation remains consistent over time. It handles extended workloads without faltering. Many value its predictable behavior and reliability, making it a strong candidate for demanding setups requiring consistent performance.
