R911295819 (MHD112C-035-NP3-BN)

How does the liquid-cooled housing in MHD112C-035-NP3-BN improve duty capability during cyclic acceleration?

It removes heat directly from the stator jacket by keeping copper and magnet temperatures within design limits under repeated load surges. It sustains torque linearity and reduces thermal derating that would otherwise limit throughput.

What positioning fidelity can its HSF digital servo feedback (relative) deliver for coordinated multi-axis moves?

The high-resolution incremental feedback enables tight velocity loops and low following error with modern Rexroth drives. Its relative encoding also allows electronic homing strategies while maintaining low jitter for contouring tasks.

Why is the 70 Nm holding brake on MHD112C-035-NP3-BN valuable for vertical axes or safety-related stops? (Product code: MHD112C-035-NP3-BN)

The brake supplies static torque independent of drive current for securing loads when de-energized or faulted. It reduces mechanical creep on Z-axes and meets stop-category requirements in many machines.

How does the 38 Nm continuous standstill torque translate to fixture clamping or low-speed pressing? (Product MHD112C-035-NP3-BN)

The motor can deliver rated electromagnetic torque without overheating due to its cooling concept. Itenables precise force control for index locks, low-speed forming and servo pressing cycles.

What integration benefits come from the 130 mm centering diameter and 192 mm flange?

The standardized pilot and flange geometry simplify concentric alignment with gearboxes and machine plates for minimizing runout and bearing loads. Its faster mechanical swap-outs cut mean-time-to-repair in production lines.

MHD112C035NP3BN

MHD112C 035 NP3 BN

mhd112c-035-np3-bn

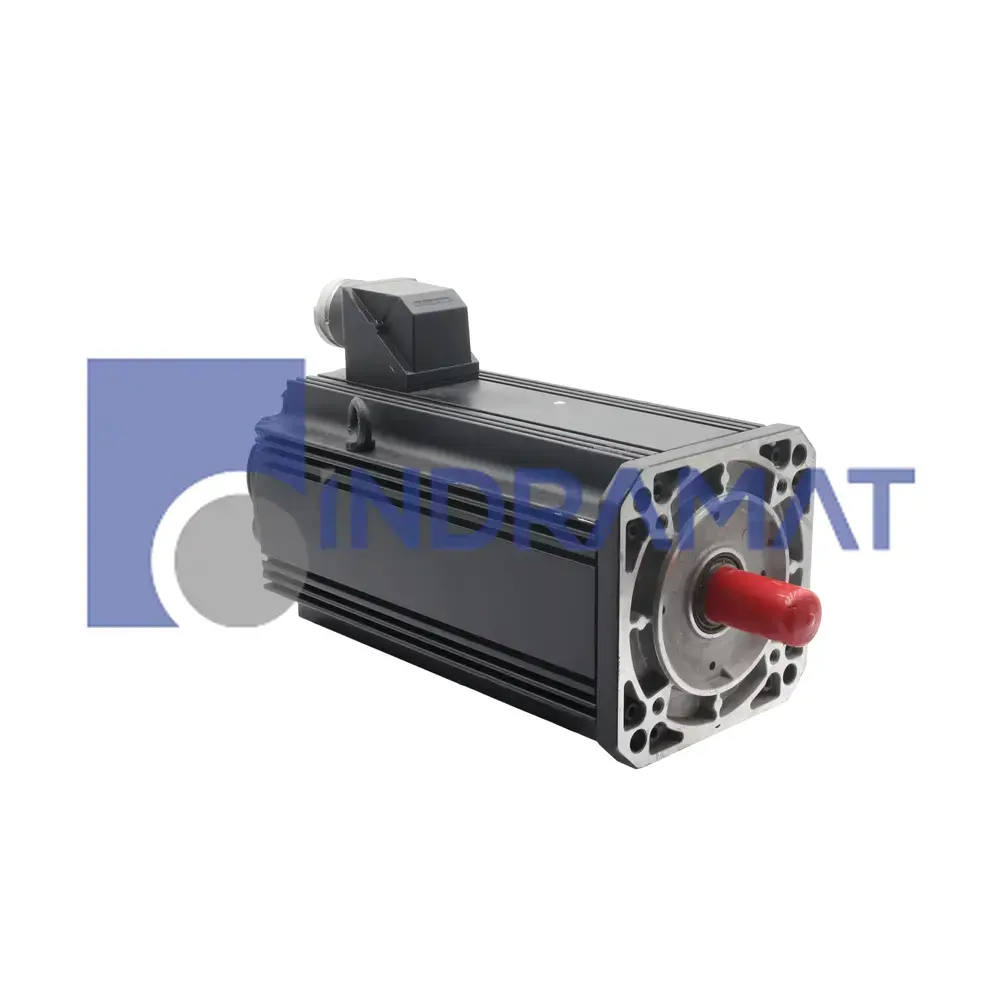

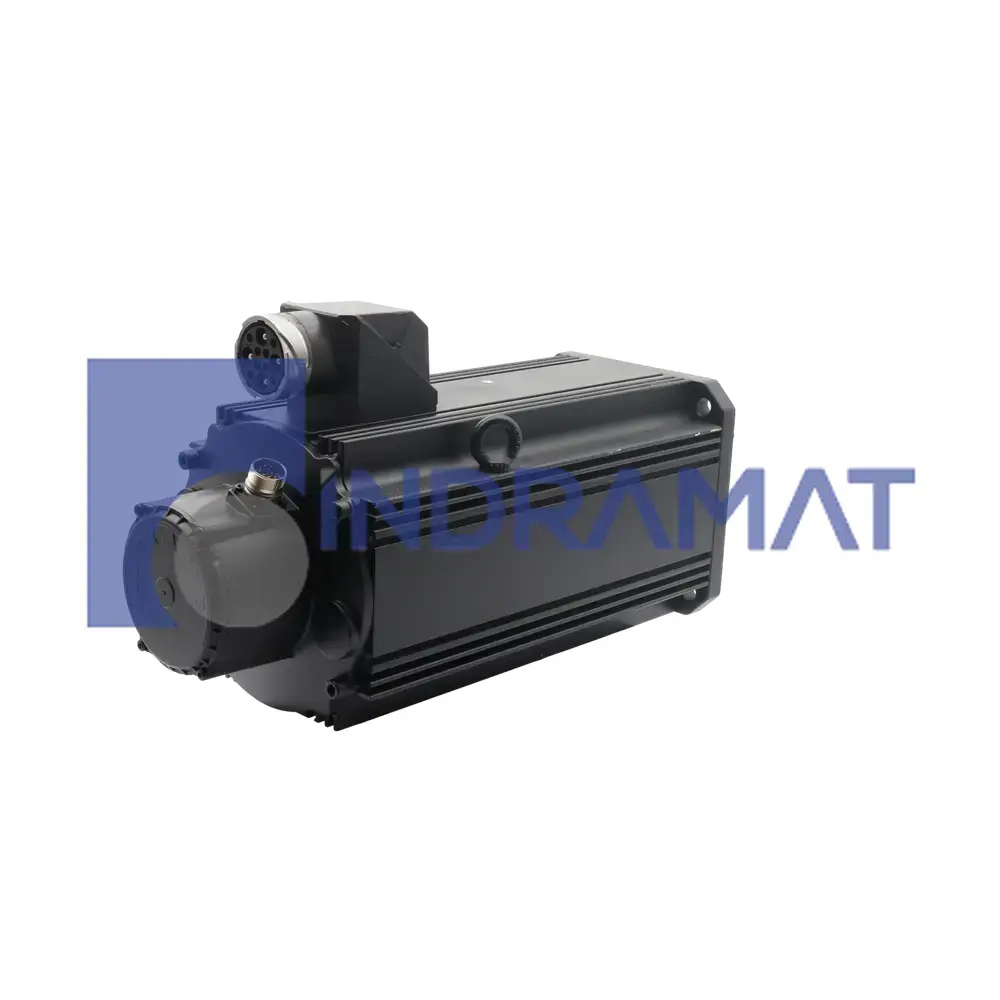

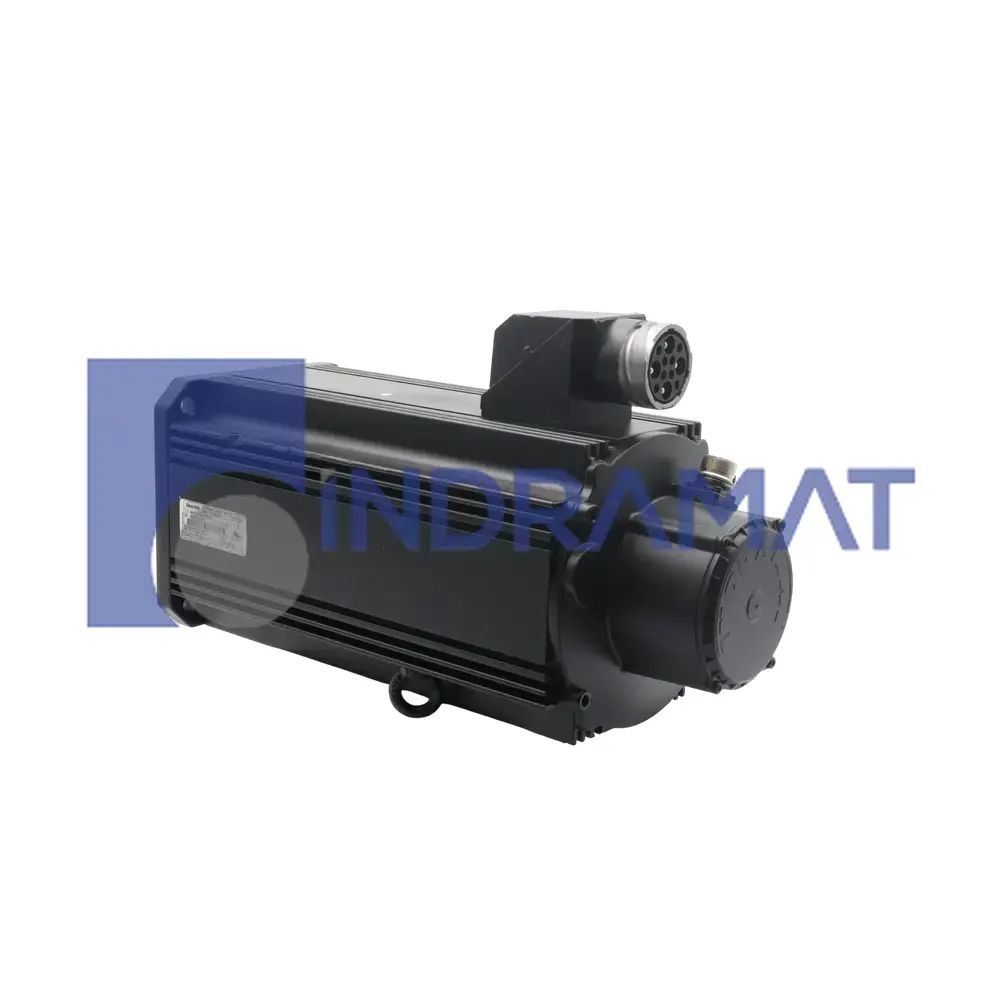

The MHD112C-035-NP3-BN servo motor from Bosch comes a 112 frame and C length. It maintains ambient thermal range through its installed liquid-cooled system in the housing. It delivers 38 Nm standstill torque and possess HSF digital feedback encoder. This unit includes a keyed, sealed shaft, Ø130 mm pilot, 192 mm flange and side-B power for simplifying machine integration across printing, packaging, textiles and robotics.
