R911296603 (MHD090B-058-NG0-UP)

MHD Synchronous Motors

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

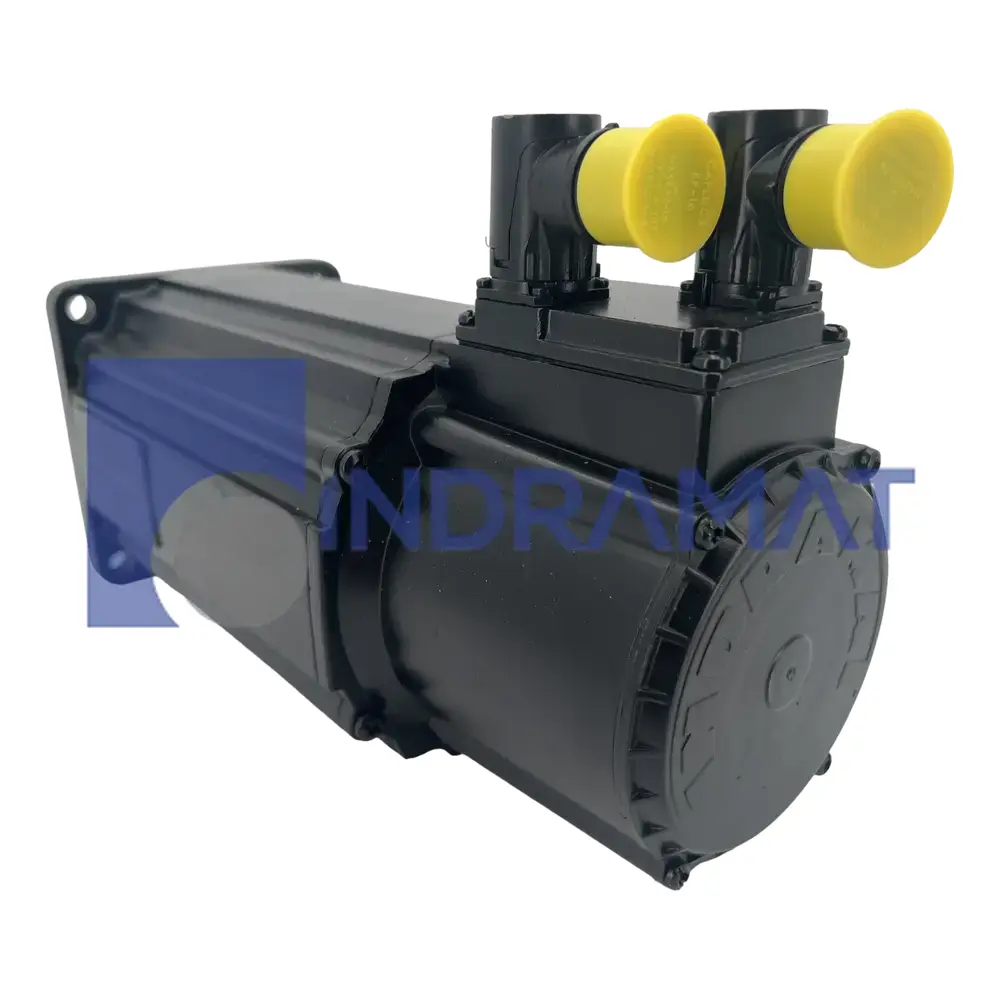

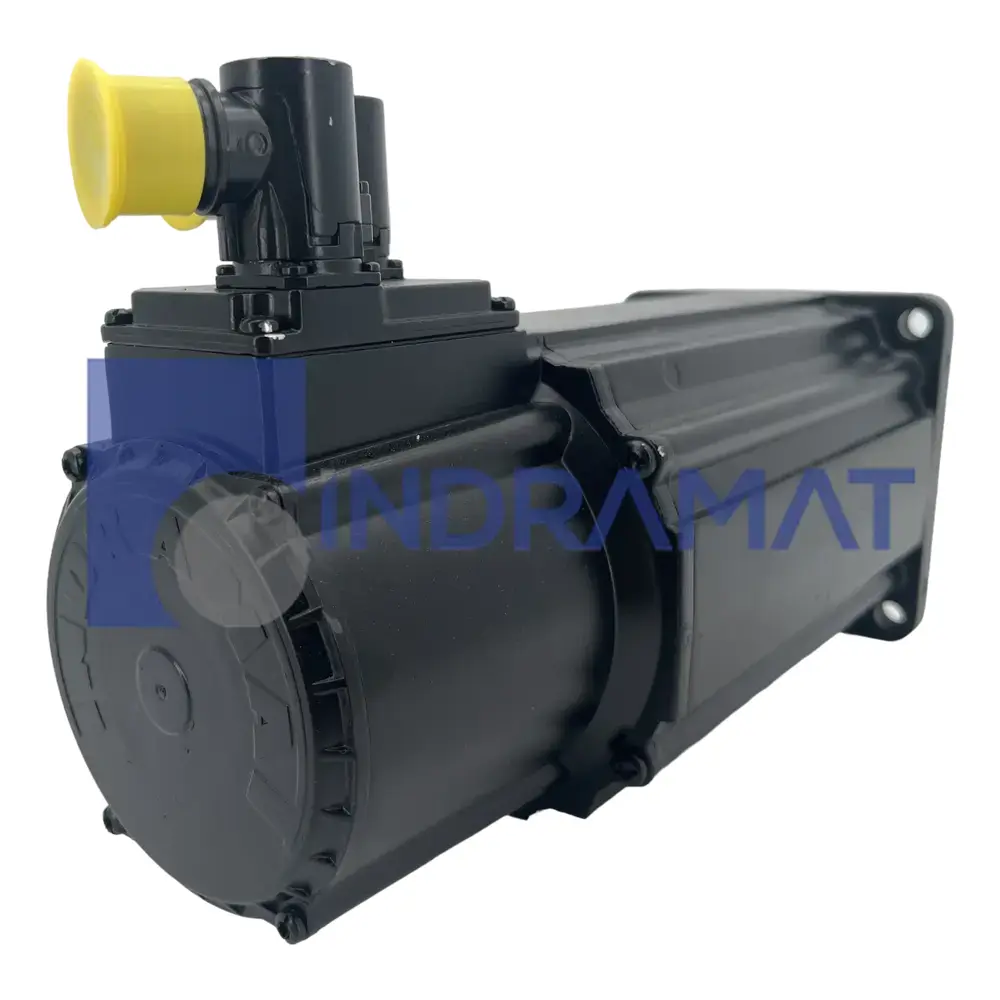

The Rexroth Indramat R911296603 (MHD090B-058-NG0-UP) is an industrial synchronous servo motor designed for environments requiring IP65 protection. It operates with natural convection housing cooling (IP68) and features a plain shaft with seal, digital servo feedback (HSF) for relative position detection, and a turnable power connection (270° range) utilizing power and feedback connectors. Key characteristics include a continuous torque at standstill of 12.0 Nm, continuous current of 11 A at 60 K, a standard speed of 2500 RPM (max 5000 RPM), and a flange size of 140 mm with a centering diameter of 110 mm. The motor measures 264 mm in length and 130 mm in thickness, supporting straightforward integration into servo drive systems.

Technical Specifications

Protection Class
IP65

Motor Type
Brushless

Lubrication Type
Grease-lubricated Ball Bearings

Maintenance
Maintenance-free Operation

Design
Compact

Max Continuous Current
11 amperes at 60K

Max Continuous Torque Output
12 newton meters

Characteristic Motor Speed
2500 revolutions per minute

Max Motor Speed
5000 revolutions per minute

Peak Current
59.5 amperes

Length
264 millimeters

Thickness
130 millimeters

Installation Type
Universal

Frequently Asked Questions

Common Misspellings

Internal Product Review

The MHD090B-058-NG0-UP provides consistent output across a range of processes. Its adaptability allows smooth integration with different systems. Users appreciate its ability to maintain efficiency during long-term use. Its stability makes it an important component in productivity-driven environments. Overall, it remains an effective choice for dependable and steady operations.
