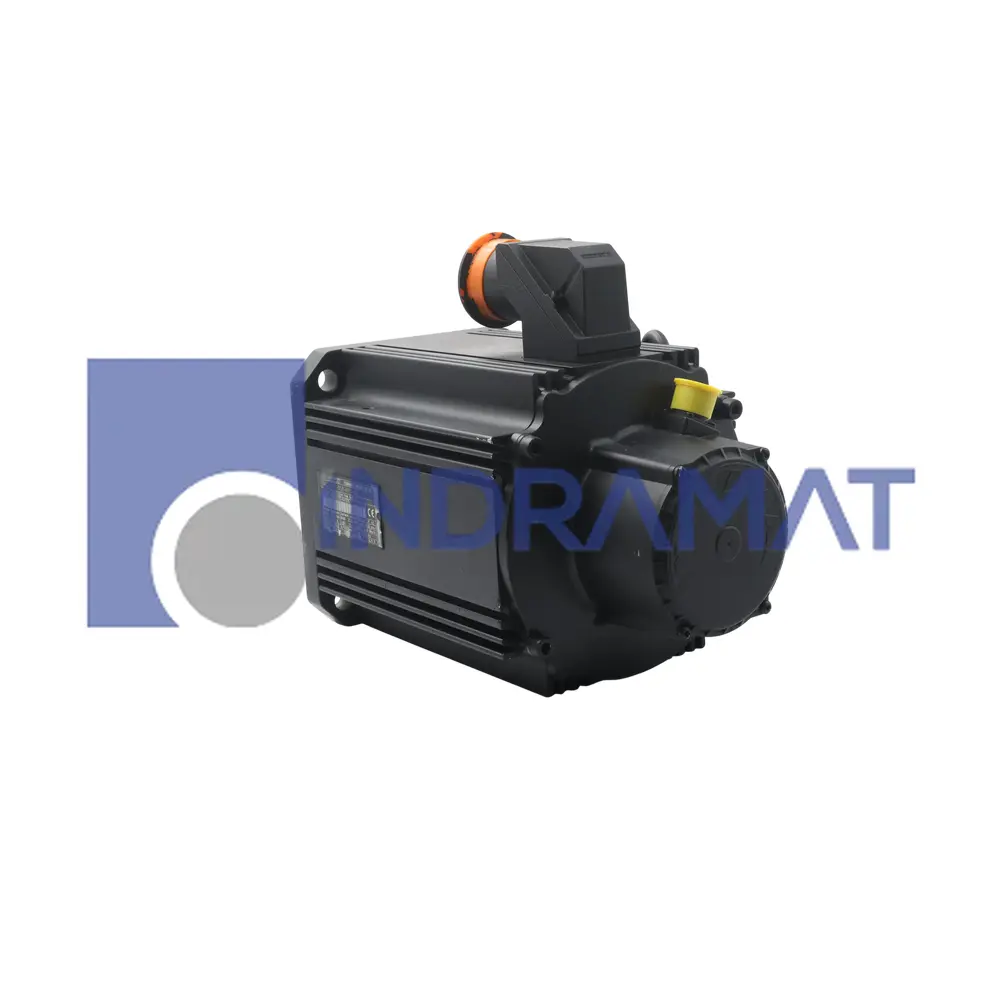

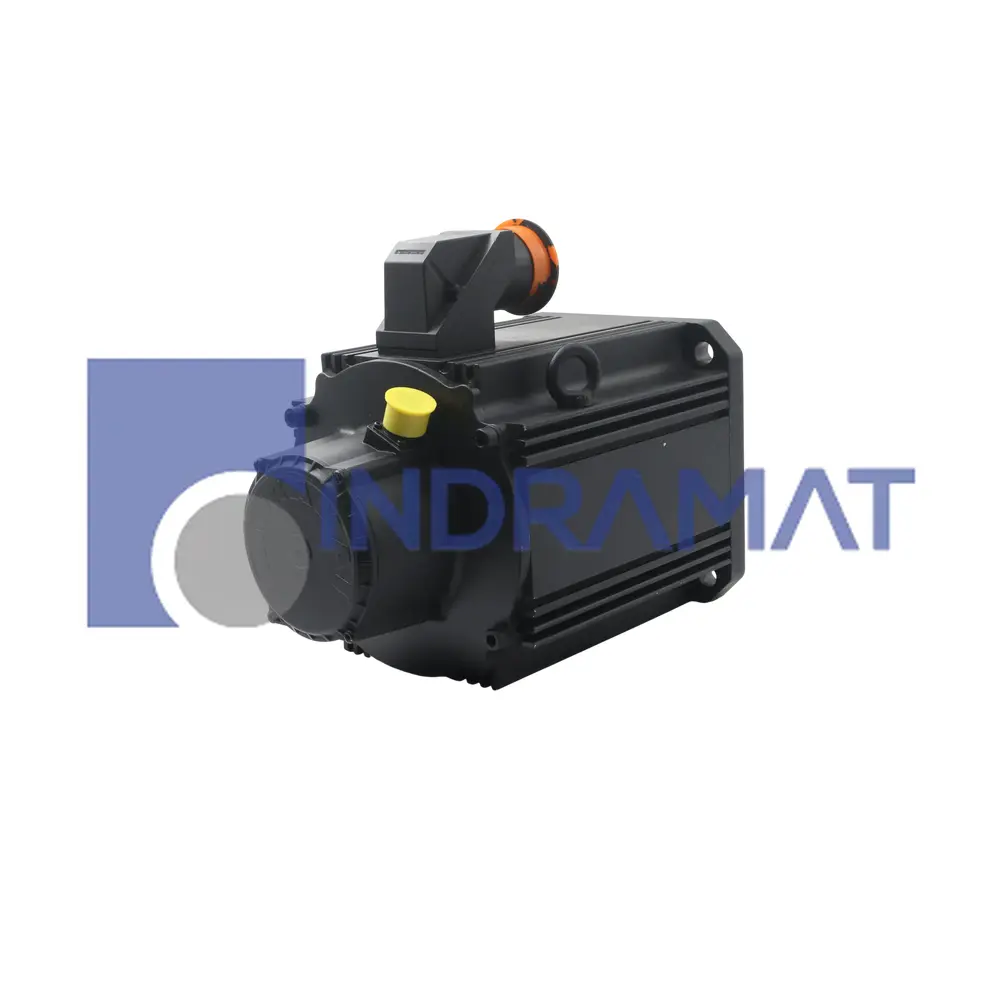

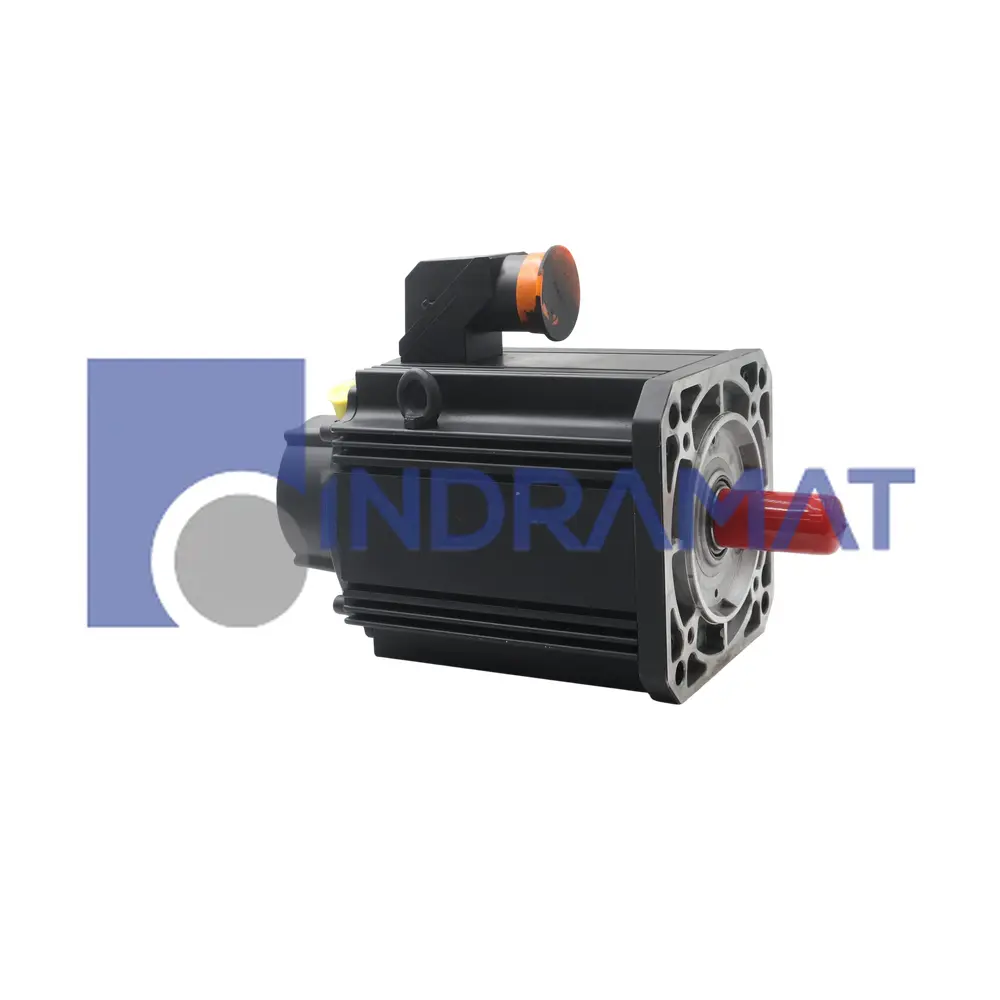

R911291476 (MKD112A-024-GP0-AN)

Name: R911291476 (MKD112A-024-GP0-AN)
Brand: Indramat Motors
SKU: MKD112A-024-GP0-AN
Price: 947.00 USD
Availability: InStock

MKD Synchronous Motors

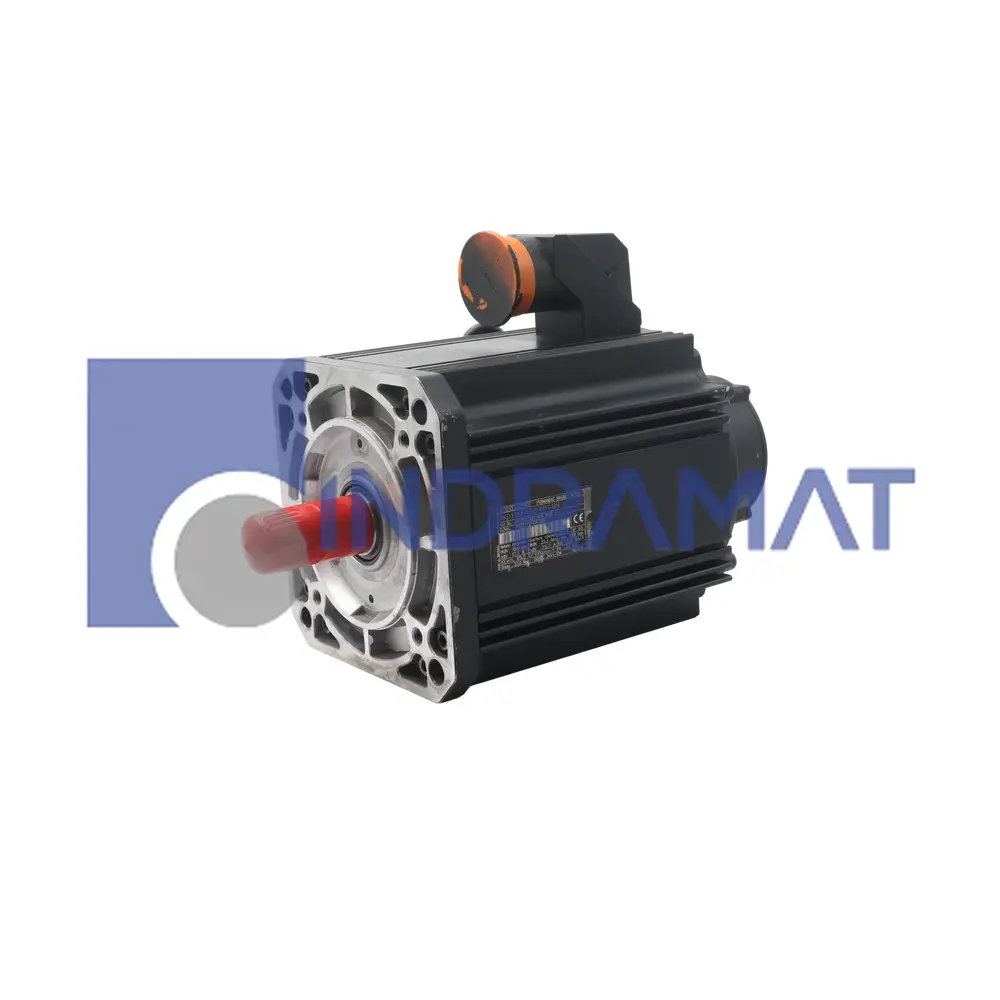

Front Left

In-Stock, Ships 3-5 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
sales@indramat-usa.com

The R911291476 (MKD112A-024-GP0-AN) is a synchronous servo motor engineered by Bosch Rexroth for direct integration as a main or servo drive. It features IP65 protection, allowing for installation in any permissible position while effectively guarding against dirt and liquids. This motor is equipped with a keyed shaft, operates without a holding brake, and utilizes digital resolver feedback for relative position detection. Operational specifications include a continuous stall torque of 15.0 Nm via natural convection and up to 22.5 Nm with surface cooling, rated operation at 2000 rpm, and a voltage constant of 70 V/1000 rpm. The unit measures 192 mm in flange size, has a centering diameter of 130 mm, and weighs 25 kg. The insulation class is F, and it supports ambient temperatures from 0 to 40 degrees Celsius up to 1000 meters installation altitude.

Technical Specifications

Product Type
Automation Equipment

Intended Use
Servo and Main Drive Motors

Mounting Position
Any permissible

Protection Category
IP 65

Electrical Connection Power Supply
314 - 355 V

Rated Frequency
167 Hz

Operating Mode
Natural Convection

Overtemperature
60-K/100-K

Continuous Torque (Natural Convection)
15 - 17 Nm

Continuous Current (Natural Convection)
13.1 - 15.9 A

Continuous Torque (Surface Cooling)
22.5 Nm

Continuous Current (Surface Cooling)
19.7 A

Operation Speed
2000 rpm

Winding Inductance
14 mH

Feedback
Digital Resolver

Output Shaft
With Key

Holding Brake
Not Equipped

Power Connector Position
Top

Ambient Temperature Range
0 to 40 degree Celsius

Maximum Mounting Height
1000 meters above sea level.

Frequently Asked Questions

What is the rated torque output for the MKD112A-024-GP0-AN?

The MKD112A-024-GP0-AN generates a nominal torque of 24.0 Nm under standard load conditions, ensuring efficient operation in a wide range of motion control applications.

What torque level does the MKD112A-024-GP0-AN maintain while at standstill?

The MKD112A-024-GP0-AN maintains a stall torque of 15.0 Nm, ensuring that the motor can maintain position under load for system efficiency.

What frame dimensions does the MKD112A-024-GP0-AN feature?

The MKD112A-024-GP0-AN features a size designation of 112 with a frame of length. This provides streamlined dimensions for ease of installation in diverse system layouts.

What type of thermal management is used in the MKD112A-024-GP0-AN?

The MKD112A-024-GP0-AN uses natural air cooling to keep the motor from overheating when in continous use.

Does the MKD112A-024-GP0-AN operate reliably in warmer environments?

Yes, the MKD112A-024-GP0-AN has a broad temperature tolerance that enables optimal performance in temperatures from 0°C to +45 °C, ensuring reliability in a wide range of industrial environments.

Common Misspellings

MKD112A024GP0AN

MKD112A 024 GP0 AN

mkd112a-024-gp0-an

Internal Product Review

The MKD112A-024-GP0-AN offers durability even in harsh environments. Its energy-efficient operation is a big plus even in continuous duty applications. However, this model lacks an integrated brake, which can be a disadvantage in some applications.
