Bosch Rexroth Indramat Drives – Sales & Support
Need a drive repair or replaced? Contact Indramat USA today by calling 919-443-0207 or by filling out the quote form to receive a comprehensive, industry competitive quote FAST. If you would prefer to send an email, send an email to [email protected] with your part number, any listed faults, and your contact information to receive a response back within 15 minutes during business hours.
Bosch Rexroth Indramat drives are renowned for their reliability and performance in industrial automation. Whether you need a new unit or a repair/replacement, Indramat-USA is your trusted source for purchasing and servicing these drives (with fast quotes, expert repairs, and worldwide shipping). Read on to find the right Indramat drive for your needs and see why so many businesses rely on Indramat-USA for their motion control solutions.

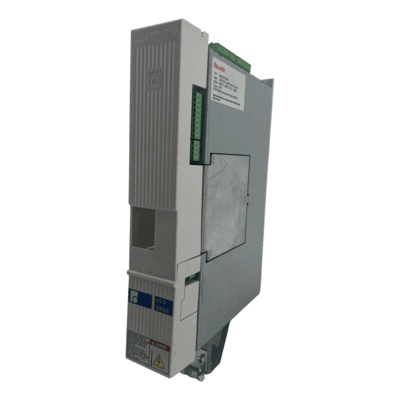

Indramat DKC Drive Controllers (EcoDrive Series)
The Indramat DKC Drive Controllers are a family of digital servo drive amplifiers widely used for single-axis and multi-axis motion control. Branded as part of the “EcoDrive” series, DKC drives are known for exceptional reliability and cost-effectiveness in automation. They precisely control AC servo motors in applications ranging from packaging machines and printing presses to assembly systems and CNC machinery. These controllers are user-friendly – they can store up to 32 position recipes (setpoints) via an I/O option card for simple positioning tasks without a separate motion controller. Programming and tuning are accomplished with Bosch Rexroth’s DriveTop software over an RS-232 interface, making setup and diagnostics straightforward.
Part Number | Power Rating | Input Voltage | Current Rating | Control Interface | Cooling | Notable Features |
~8 kW | 3×230 VAC | 40 A | Analog ±10 V | Internal Fan | 32 position memory, RS-232 interface | |
~15 kW | 3×400–480 VAC | 200 A | Analog | Internal Fan | High-current output, 700 V DC bus | |
~10 kW | 3×400–480 VAC | 40 A | SERCOS | Internal Fan | Digital control, programmable positions | |
~12 kW | 3×400–480 VAC | 100 A | PROFIBUS / Analog | Internal Fan | Advanced comms, expanded firmware capabilities | |
~12 kW | 3×400–480 VAC | 100 A | CANopen / Analog | Internal Fan | Newest gen, fault tolerance improvements |
The DKC11.3-040-7-FW servo drive controller is a precision device belonging to the DKC series, specifically engineered for demanding industrial environments. It accepts a three-phase AC input voltage ranging from 380 to 480 V and offers a steady 40 A rated and peak current. This power ensures robust performance in applications such as CNC machines, robotics, and printing presses.

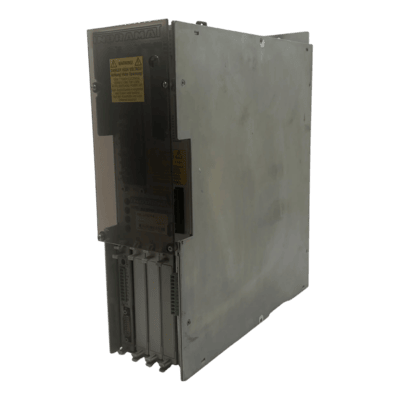

Indramat DDS Drive Controllers (DIAX Modular Drives)
The Indramat DDS Drive Controllers are modular digital AC drives that slot into rack-based systems using a common DC bus. They’re ideal for multi-axis setups where multiple servo drives share a centralized power supply. Each DDS module receives its power from a supply unit like the TVD or TVM and controls a dedicated servo motor. They’re compact, flexible, and allow for quick interface swaps with pluggable cards, supporting SERCOS, analog, PROFIBUS, and more.
| Part Number | Power Rating | DC Bus Input | Current Rating | Control Interface | Cooling | Notable Features |
| DDS02.1-W025-DA01-00 | ~5 kW | 300 V DC (TVD-fed) | 25 A cont. | Analog | Internal Blower (W) | Modular rack type, analog input |
| DDS02.1-A050-DS01-02-FW | ~10 kW | 300 V DC | 50 A cont. | SERCOS | External Cooling (A) | Multi-axis system, SERCOS optical interface |
| DDS02.1-A100-DS01-02-FW | ~12–14 kW | 300 V DC | 100 A cont. | SERCOS | External Cooling (A) | High-torque drive, firmware detachable |
| DDS02.1-W200-DS01-02-FW | ~16+ kW peak | 300 V DC | 200 A peak | SERCOS | Internal Blower (W) | Max current model for heavy industrial loads |
| DDS03.1-W050-DS01-02-FW | ~10–12 kW | 300 V DC | 50 A | SERCOS | Internal Blower (W) | DIAX04 update with enhanced diagnostics |
The DDS02.1-W025-DA01-00 is a Bosch Rexroth Indramat DDS Drive Controller featuring robust and modular construction for modern automation. It is designed to integrate with Bosch Rexroth's MDD, LAR, and MKD AC motors. The unit supports flexible hardware expansion through plug-in modules and is designed for panel mounting in industrial cabinets. Crucially, it includes a mandatory emergency stop isolation circuit to enhance safety by preventing unplanned startups.
Indramat TVD Power Supply Modules
The Indramat TVD Power Supply serves as a vital component for DIAX drive configurations, providing a regulated, high-voltage DC link to multiple connected drive modules.
| Part Number | DC Output Power | Input Voltage | DC Bus Voltage | Drives Supported | Features |
| TVD 1.1-15-03 | 15 kW | 3×380–400 VAC | 300–320 V DC | Up to 10 drives | Base generation, handles mid-size DIAX systems |
| TVD 1.2-08-03 | 7.5 kW | 3×380–480 VAC | 300 V DC | 5–8 drives | Compact build, built-in overload handling |
| TVD 1.2-15-03 | 15 kW | 3×380–480 VAC | 300 V DC | Up to 10 drives | High-efficiency model, uses external bleeder for regen loads |
| TVD 1.3-08-03 | 7.5 kW | 3×380–480 VAC | 320 V DC | 5–8 drives | Enhanced monitoring, NAM filter compatible |
| TVD 1.3-15-03 | 15 kW | 3×380–480 VAC | 320 V DC | Up to 10 drives | Latest version, supports modern DDS03/DIAX04 modules |
The TVD 1.2-08-03 power supply module delivers 6 kW of continuous mechanical power to drive systems, using 380 to 460V AC input. It manages energy efficiently with a 7.5 kW DC bus power and includes a 0.5 kW continuous regeneration capability. The compact unit is designed with built-in line reaction suppression for improved power quality. A key safety feature is the dynamic braking function, which ensures permanent magnet motors can be braked even during a drive electronics fault.

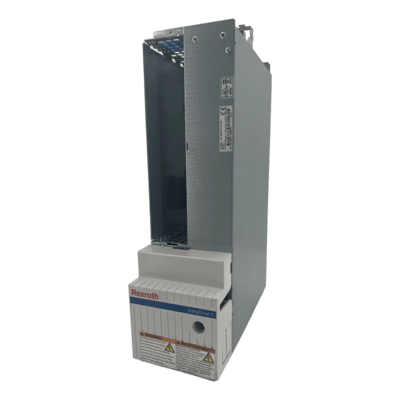

Indramat HCS Drive Controllers (IndraDrive Cs Series)
The Indramat HCS Drives are Bosch Rexroth’s modern solution for compact, integrated servo control. With high power density and support for multiple fieldbus protocols, HCS controllers are perfect for robotics, conveyors, and packaging machines. They feature built-in safety (STO), multiprotocol Ethernet, and removable memory cards for rapid replacement. The HCS01 utilizes FWA-INDRV firmware, which is present in all iterations of this converter.
| Part Number | Power Output | Input Voltage | Current Rating | Interface Type | Cooling | Key Features |
| HCS01.1E-W0028-A-03 | ~1.5 kW | 3×200–230 VAC | 2.8 A | Analog / Ethernet | Internal | Ultra-compact, PLC onboard, Ethernet option cards |
| HCS02.1E-W0070-A-03-NNNN | ~7 kW | 3×380–400 VAC | 7 A | Ethernet (Multi-protocol) | Internal | Flexible comms, compact for mid-range automation |
| HCS03.1E-W0100-A-05-NNBV | ~10 kW | 3×400–480 VAC | 10 A | EtherCAT / PROFINET | Internal | High-speed comms, removable MMC card |
| HCS04.1E-W0500-A-05-NCBV | Up to 14 kW | 3×400–500 VAC | 500 A peak | PROFINET / SERCOS | Blower | Largest in series, Safe Motion certified |
| HCS02.1E-W0054-A-03-NNNV | ~5.4 kW | 3×380–400 VAC | 5.4 A | Ethernet (selectable) | Internal | IndraDrive Cs with advanced diagnostics and MMC firmware |
The HCS02.1E-W0070-A-03-NNNN drive controller is a high-performance unit from the HCS series, built for demanding industrial automation. It delivers precise and efficient motor control across various sectors, including manufacturing and energy systems. The controller is specifically optimized for applications requiring a consistent, high-power output..
Why Choose Indramat-USA
When it comes to sourcing, repairing, or replacing Bosch Rexroth Indramat drives, Indramat-USA stands as a leading independent resource trusted worldwide. With a massive inventory of refurbished and hard-to-find units—including DKC, DDS, TVD, and HCS series drives—Indramat-USA offers fast shipping, expert diagnostics, and precision repair services tailored to keep industrial systems running at peak performance. Our team specializes in supporting both legacy and modern automation platforms, making it easy to extend the life of your existing systems without costly OEM replacements. Every drive we service, or supply is thoroughly tested, backed by a standard 1-year warranty, and restored to manufacturer-level performance. Whether you’re managing an urgent breakdown, planning a preventative maintenance cycle, or upgrading to a newer drive model, Indramat-USA provides personalized assistance, unmatched technical insight, and global logistics support—we are not authorized distributors. We focus exclusively on delivering cost-effective, high-quality solutions for mission-critical automation hardware. Contact Indramat-USA today to get a fast quote, speak with an expert, or restore confidence in your drive systems—backed by experience, integrity, and industrial-grade service.
Frequently Asked Questions
What is the difference between Indramat DKC and DDS drives?
The DKC series are standalone EcoDrive controllers used for single-axis motion with integrated power supplies, while DDS drives are modular, rack-mounted units that require a separate TVD power supply for multi-axis systems.
Can I replace a faulty DKC drive with a newer HCS model?
What happens if my TVD power supply fails?
Are Indramat HCS drives backward compatible with older motors?
Do Indramat drives store their parameters internally?
Does Indramat-USA offer new or only refurbished drives?
What are the most common issues with Indramat servo drives?
