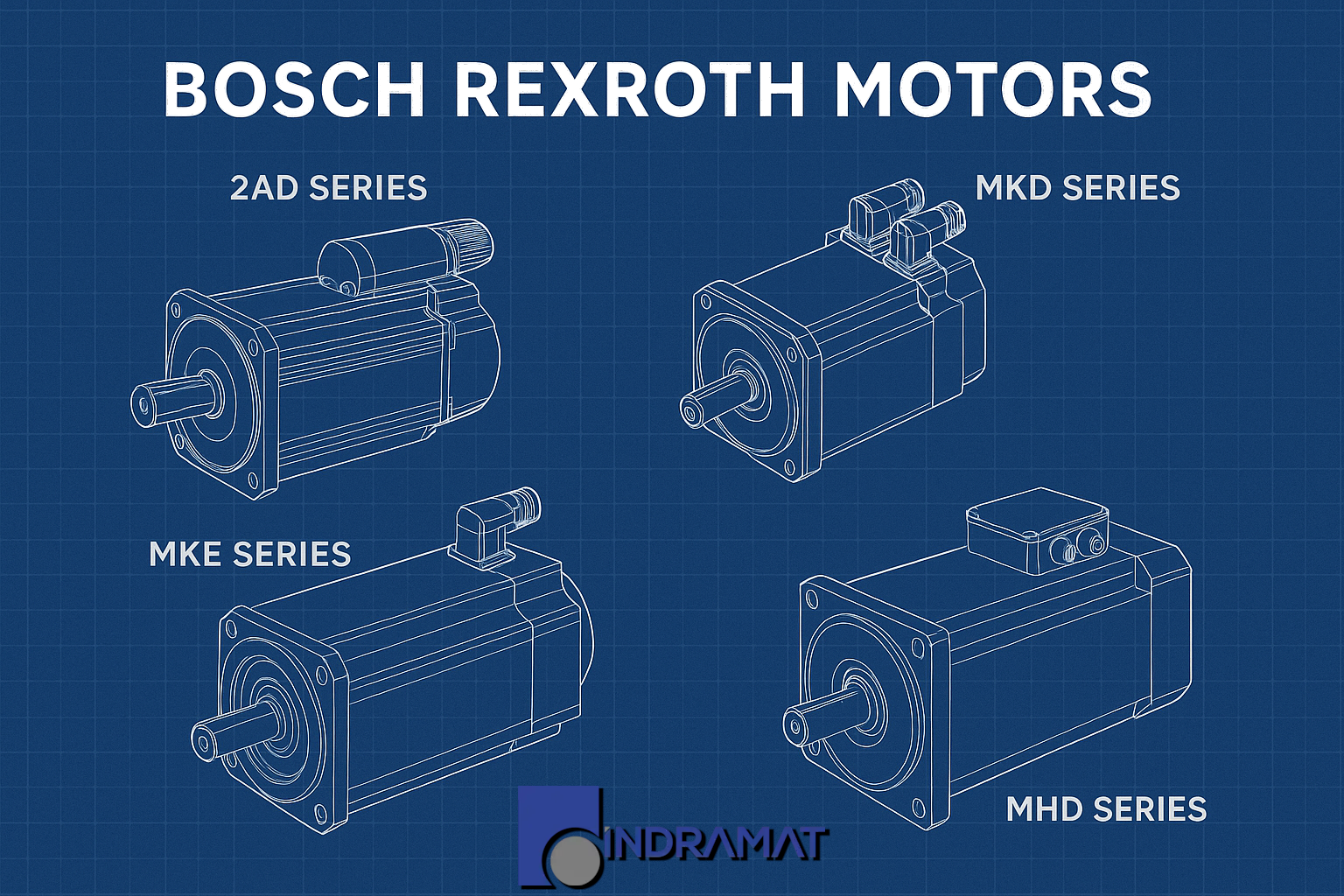

Looking for reliable, high-performance Bosch Rexroth Indramat motors? Indramat-USA.com is your go-to destination for purchasing, repairing, refurbishing, and replacing legacy Indramat motors from the 2AD, MKD, MKE, and MHD series. Whether you're retrofitting an older system or maintaining an existing production line, we stock and service the parts that keep your operations moving. Understanding the difference and appeal between each of these motors is paramount to both installing and replacing units. Below is a summarized version of each major motor, some of their sizes in comparison, and how they stack up against each other.

2AD Series – Rugged AC Spindle Motors for Heavy-Duty Applications

Indramat’s 2AD series are three-phase asynchronous (AC induction) spindle motors engineered for use in CNC machines, printing presses, and large-scale industrial systems. Known for their high torque output, robust construction, and long-term reliability, they were commonly paired with drives like TDM and KDV power supplies. They offer versatile mounting options and a wide speed range - 1500 to 9000 min-1. Precise operation is guaranteed by a motor feedback system that measures and communicates  roto position and speed to the controlling drive.

Many machines still rely on 2AD motors due to their durability. If your 2AD unit fails, Indramat-USA offers fully refurbished replacements or fast-turnaround repair services.

Featured Top Model: 2AD132C-B05OL1-CS03-D2V1

The Bosch Rexroth Indramat 2AD132C-B05OL1-CS03-D2V1 features an efficient and reliable cooling blower with a left-side power plug. This design allows for quick assembly to the motor and easy disconnection, making it simple to remove or adjust the unit should a misplacement occur in a specific application. In cable-critical industries, this plug-and-play feature is invaluable, letting workers connect or disconnect power as needed without time-consuming rewiring. The left plug placement also aids in arranging the unit for optimal, uniform airflow across the motor's components, ensuring efficient cooling.

MKD Series – Digital Servo Motors for High-Speed Precision

The MKD series includes permanent magnet synchronous motors designed for high-precision servo control. These brushless motors were commonly paired with Indramat DDS or DKC drives and feature resolver-based feedback. Their modular design, high dynamic response, and low maintenance requirements make them ideal for packaging, material handling, printing, and general factory automation. MKE motors enable high functionality operation in hazardous areas. Thanks to their brushless designs, these motors provide maintenance-free operation. These motors also boast a high overload capacity, achieved through efficient heat dissipation from the stator windings directly to the outer motor housing.

Featured Top Model: MKD071B-061-GP0-KN

The Bosch Rexroth MKD071B-061-GP0-KN is a robust servo motor designed for deployment with a dedicated motor controller. The motor utilizes resolver feedback to allow the controller to precisely manage speed and position according to programmed values. Its shaft features a key compliant with DIN 6885-1 and includes a shaft seal for protection. Housed in a durable IP65-rated casing, the motor is completely dustproof and protected against low-pressure water jets. The unit delivers its rated output in ambient temperatures between 0∘ and 40∘C.

MKE Series – Explosion-Proof Motors for Hazardous Areas

The MKE motor series is the explosion-proof counterpart to the MKD line, engineered for hazardous environments like paint booths, grain processing, and chemical handling. These motors meet ATEX and UL safety certifications and feature flameproof enclosures and sealed connectors. They deliver the same performance as their standard counterparts while meeting strict regulatory demands. The brushless design and lifetime lubricated bearings ensure maintenance free reliability. Furthermore, superior heat dissipation from the stator windings to the motor housing provides the MKE series with a high overload capacity.

Featured Top Model: MKE037B-144-AG0-AUNN

The Rexroth Indramat MKE037B-144-AG0-AUNN is a compact permanent magnet industrial servo motor engineered for high efficiency and kinetic energy delivery. It features a high torque density and a durable design compliant with EN 60079 standards. This motor is suitable for a wide range of industrial equipment, including textile, food processing, assembly systems, and metal forming machinery. Measuring 283 mm long and 40 mm wide, it ensures precise control through a single-turn Hiperface optical encoder (with 128 increments) that converts physical motion into actionable electronic data for the drive controller. The motor utilizes a plain shaft with a sealing ring.

MHD Series – Heavy-Duty Synchronous Motors for Large Axes

The MHD series motors are high-performance, brushless synchronous AC motors designed for torque-intensive applications like large printing presses, extrusion, or heavy conveyors. With cooling options ranging from natural convection to liquid cooling, they offer robust, continuous torque performance for demanding motion tasks. Considered a legacy series, the MHD is still widely used and considered maintenance-free. The series is highly configurable, offering a variety of options for motor feedback, cooling, brakes, and shafts.

Featured Top Model: MHD115A-035-PP0-AA

The Bosch Rexroth MHD115A-035-PP0-AA is a synchronous motor that must be paired with a drive controller for operation. Featuring an A length code and a B05 design (DIN 42950, Part 1), the motor is intended for mounting in a clean, dry environment. For safety and to prevent damage, proper lifting procedures must be followed using cranes and sling belts. The unit must also be maintained in a dry state during transport and storage. A permanent type label provides the designation and technical data necessary for procuring spare parts in the event of failure.

Whether you’re maintaining a legacy system, troubleshooting a motor fault, or sourcing a hard-to-find part, Indramat-USA is the premier source for Bosch Rexroth Indramat motor solutions. With a comprehensive inventory of new, used, legacy, and refurbished motors available, Indramat-USA provide the expertise and turnaround times that industrial environments demand. Our team offers fast response quotes, helping you minimize downtime and extend the life of your automation equipment. When you need trusted repair, refurbishment, or replacement services for your Indramat motors, choose Indramat-USA to keep your operations running with confidence. Call 1-919-443-0207 or send an email to [email protected] to get in touch with an Indramat-USA representative today.
